Long Span Shelving

Explore the Uses of Long Span Shelving

When you buy our rock-solid, durable long span shelves - you can be confident that your products will stand strong and sturdy. From retail display units to warehouse shelving and storage, the uses of our shelving systems are endless. Our units can be customised to fit the space you’re working with and can maximise available storage areas.

Long Span Shelving Loads

All of our long span beam shelf levels have been independently tested here in Melbourne and now have a minimum load rating of 600kgs UDL per shelf level. Note: Each level includes board supports for additional reinforcement, applicable to depths of 800mm, 900mm, and 1000mm, placed roughly 600mm apart. supports.

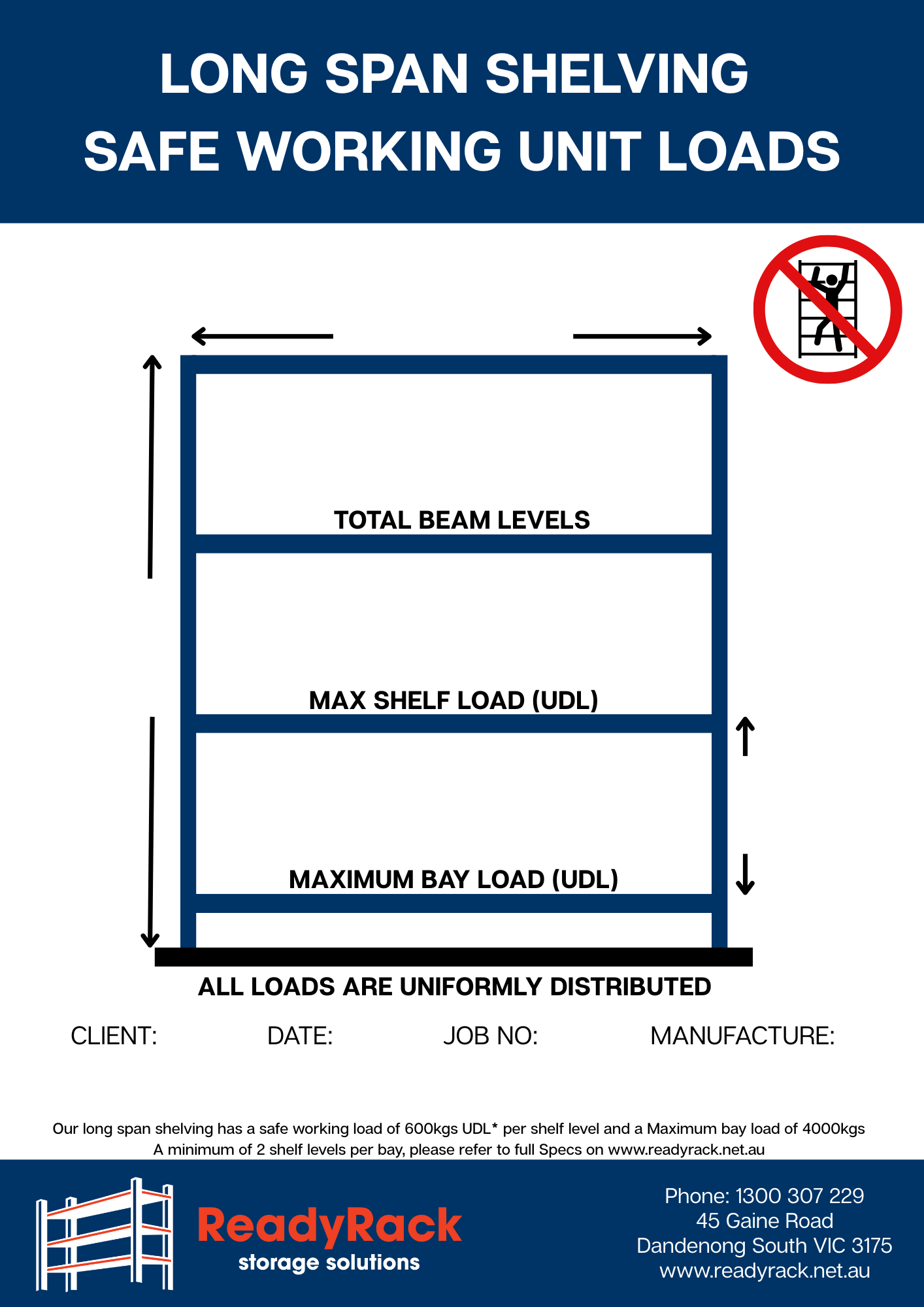

Our long span shelving has a safe working load of 600kgs UDL* per shelf level and a Maximum bay load of 4000kgs

Our range of shelving loads:

1000mm wide Span = 600kgs

1500mm wide Span = 600kgs

1800mm wide Span = 600kgs

2100mm wide Span = 600kgs

2400mm wide Span = 600kgs

Board Supports

Each level includes board supports for additional reinforcement, applicable to depths of 800mm, 900mm, and 1000mm, placed roughly 600mm apart.

Support quantities per level are as follows:

For 2400mm Wide: 5 supports per level
For 2100mm Wide: 4 supports per level
For 1800mm Wide: 4 supports per level
For 1500mm Wide: 3 supports per level
For 1000mm Wide: 2 supports per level

*Each shelf level is designed to support a maximum load of 600 kilograms with a Uniformly Distributed Load (UDL). When loading the shelves to their maximum capacity, it is essential to evenly distribute the load across the entire shelf level, including its supporting beams. We recommend following these guidelines to maintain optimal safety and performance.
