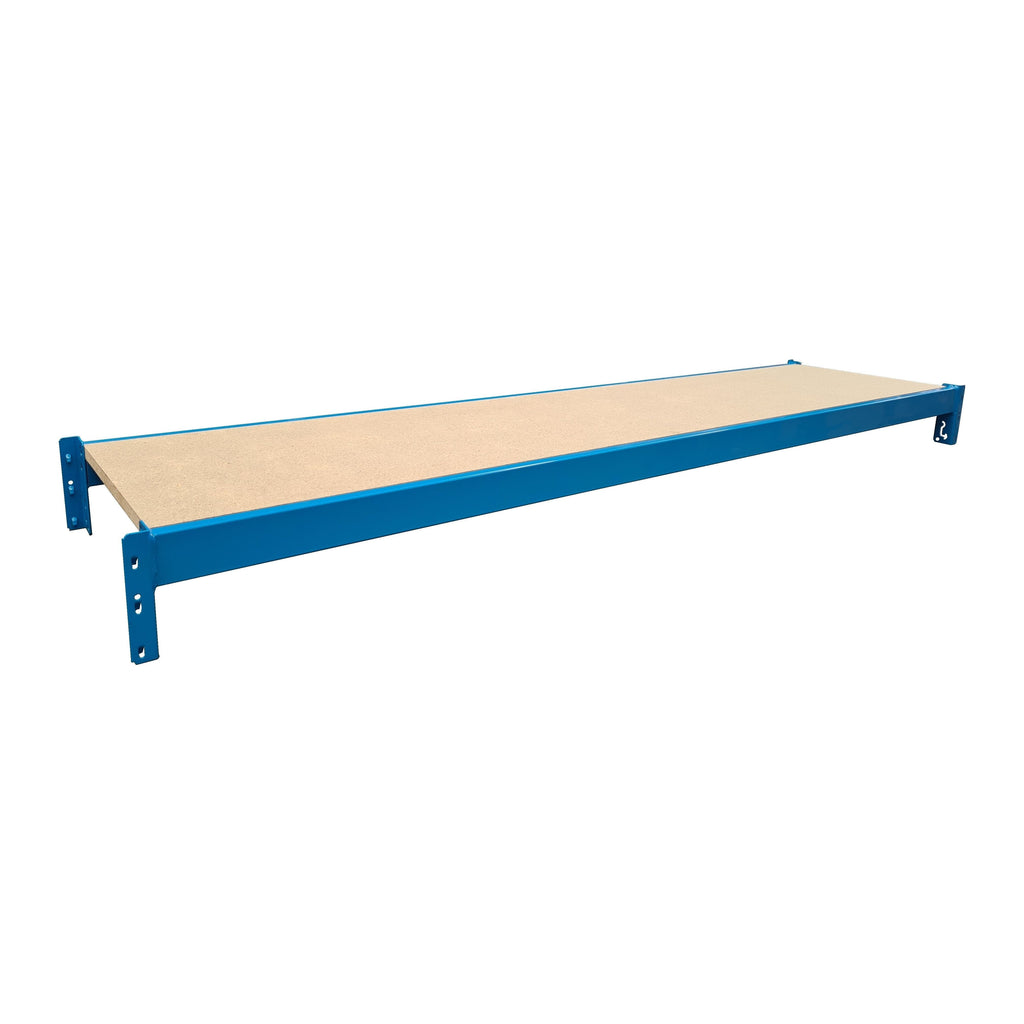

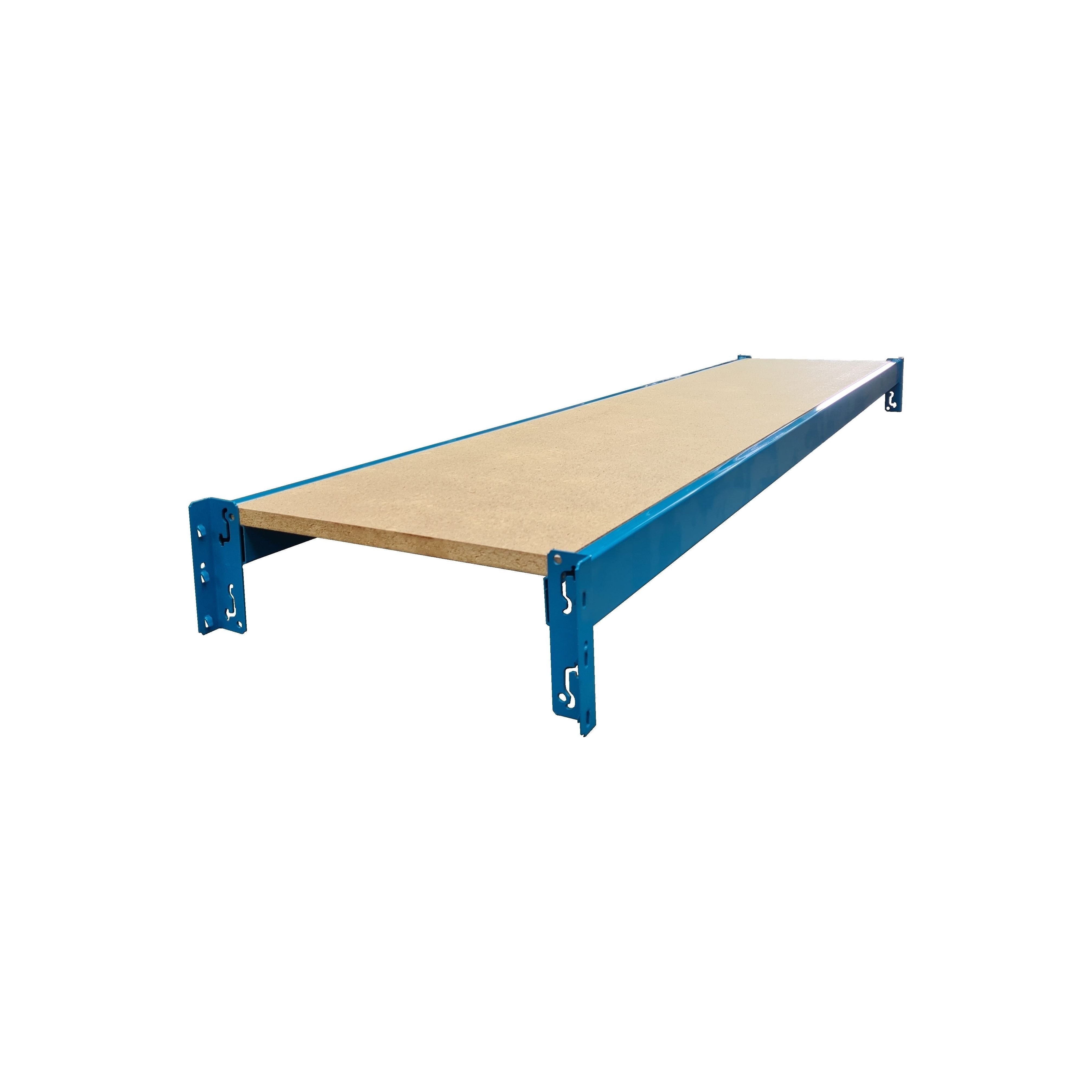

Additional Shelf Level 2400mm Wide x 390mm DeepSKU: LS.390.2400.LPB
With ReadyRacks' shelf levels, you can now maximise the storage capacity of your Longspan shelving system, providing you with more space to store your products and equipment. Our shelves are adjustable, so you can customise each levels' height to suit your specific storage needs.
Our shelf levels are made with high-quality materials, ensuring they are sturdy and durable enough to handle heavy loads. This makes them perfect for industrial and commercial applications where storage capacity and reliability are crucial.
Upgrade your Longspan shelving system with our new shelf levels today and take your storage capabilities to the next level!
Check out our range of Louvered panels and to add to your long span shelving.

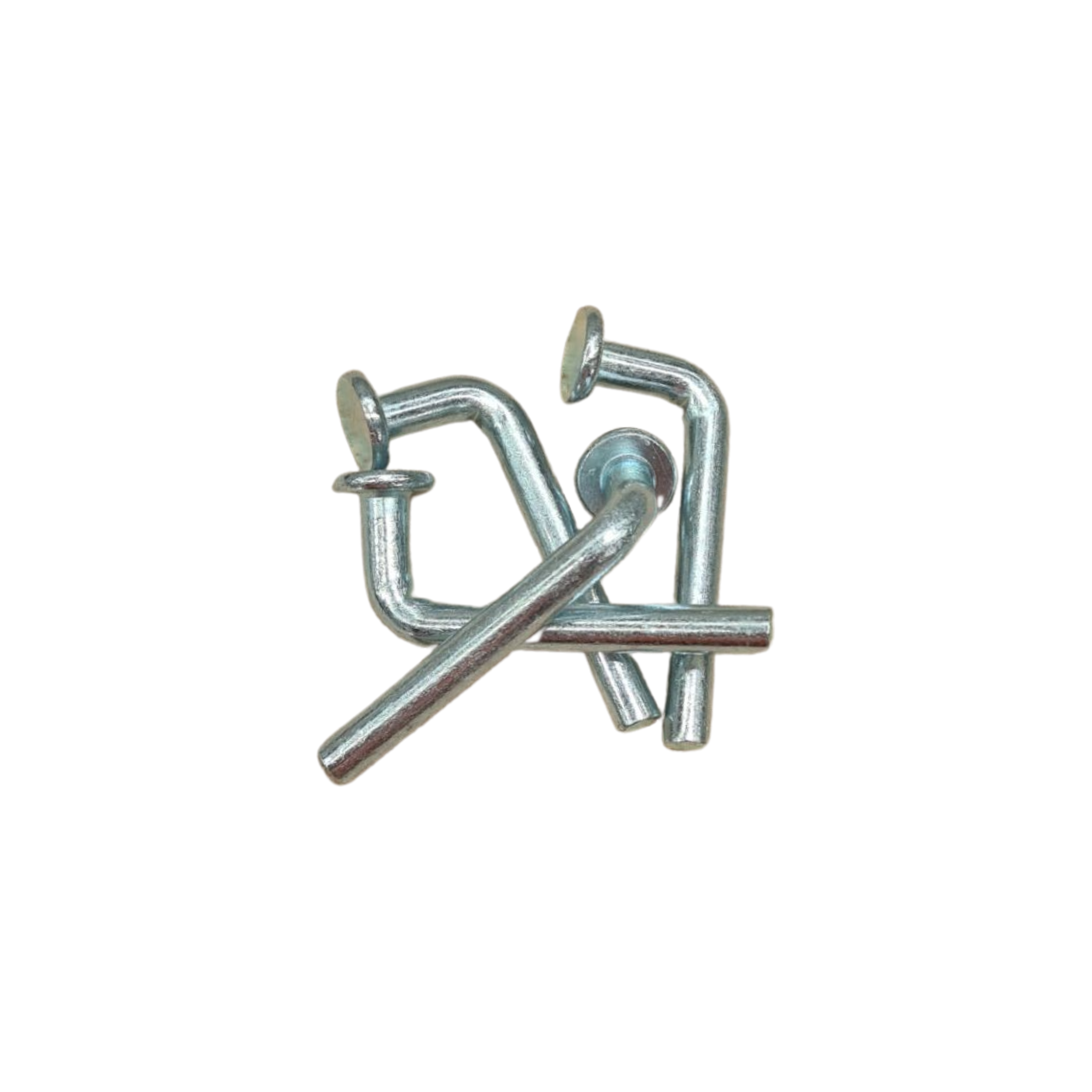

Includes: 2 x beams and 1 x particle board and all hardware for assembly
Note: Each level includes board supports for additional reinforcement, applicable to depths of 800mm, 900mm, and 1000mm, placed roughly 600mm apart.
Support quantities per level are as follows:
For 2400mm depth: 5 supports per level
For 2100mm depth: 4 supports per level
For 1800mm depth: 4 supports per level
For 1500mm depth: 3 supports per level
For 1000mm depth: 2 supports per level
2400mm long beams with 18mm thick particle board
Please note each Long span frame adds on approximately 60mm to the overall length
Our 2400mm long span shelving has a safe working load of 600kgs UDL* per shelf level and a Maximum bay load of 4000kgs. With hole positions at every 50mm, makes adding any additional custom fittings easy and making it the most adjustable and versatile DIY shelving system available.
*Each shelf level is designed to support a maximum load of 600 kilograms with a Uniformly Distributed Load (UDL). When loading the shelves to their maximum capacity, it is essential to evenly distribute the load across the entire shelf level, including its supporting beams. We recommend following these guidelines to maintain optimal safety and performance.
