A Pallet racking add-on bay with a board is an efficient storage solution designed to maximise warehouse space and enhance organisation. This add-on bay is designed to integrate with existing Dexion-compatible pallet racking systems seamlessly.

The add-on bay features sturdy steel uprights and horizontal beams that provide reliable support for storing pallets and other heavy-duty items. These components are engineered to withstand heavy loads and maintain stability, ensuring the safety of stored goods and personnel.

By incorporating the add-on bay, businesses can further optimise their storage capacity while maintaining a secure and organised warehouse environment. This configuration offers a cost-effective solution for storing items of varying sizes and weights, making it suitable for various industries, including manufacturing, distribution, and logistics.

Overall, the pallet racking add-on bay with a board is a practical and versatile addition to any warehouse, allowing businesses to maximise

utilisation, improve inventory management, and ensure the safety of stored goods.

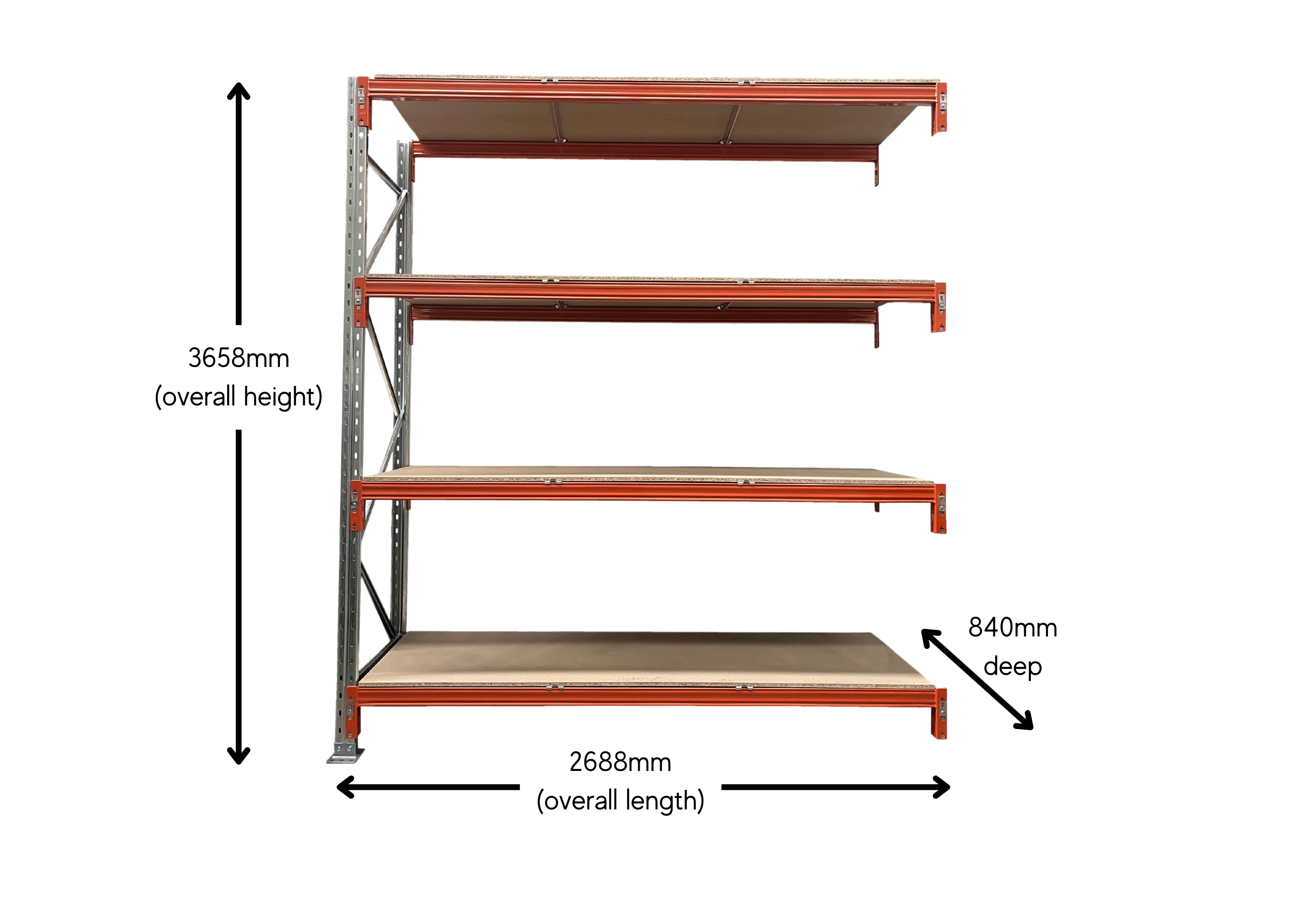

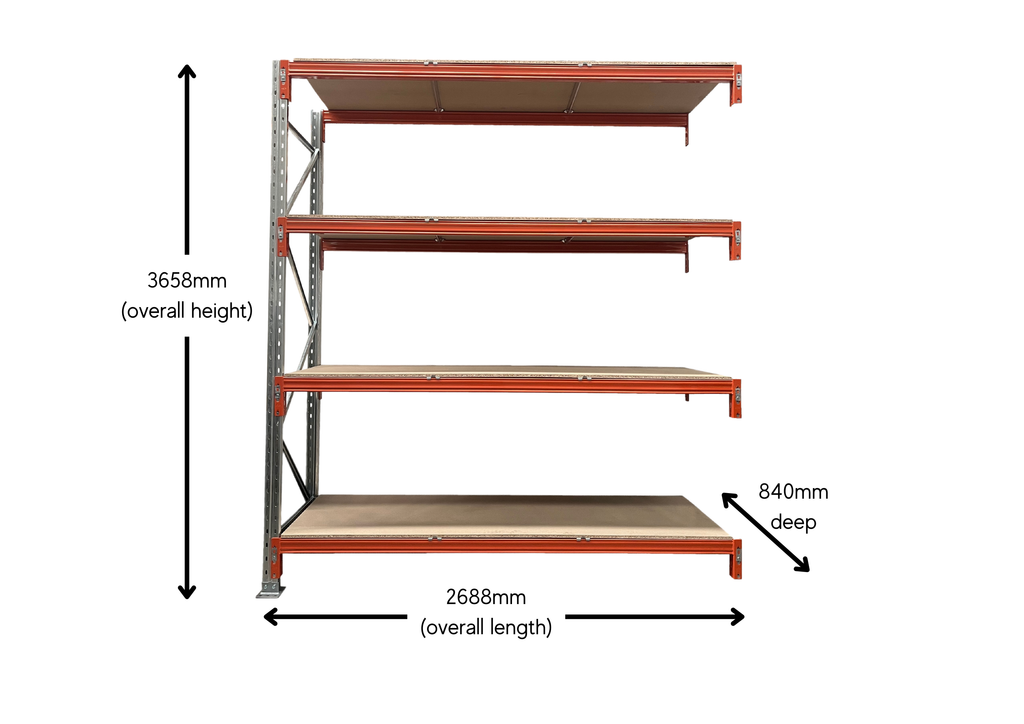

1 x Frames: Each galvanised frame measures 3658mm x 840mm, comes fully assembled and dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.

Includes Uprights, Bracing, Nuts and bolts, Base Plates, Leveling Plates, and Screw Bolt Floor Fixings.



8 x Beams: Measuring 2591mm x 63mm, each with two safety clips. These beams are designed to support your pallets or items and provide maximum weight-bearing capacity. With eight beams included, you'll have ample support for your storage needs.



4 x Boards: These boards offer a reliable surface for placing  items. They are durable and designed to withstand the weight of heavy loads. With four boards included, you can create multiple storage levels within your pallet racking system.
Pallet Racking Chipboard to suit 2591mm Beam length ,includes 2 x Wingtek Screws 10-16 x 45mm



8 x Board Supports: These supports are essential for securing the boards and preventing movement or slippage. With eight board supports included, you can ensure the stability and safety of your stored items.

Beams:

  • Dimensions: 2591mm x 63mm
  • Load Capacity: Supports up to 917kg uniformly distributed load (UDL)
  • Pitch: 76.2mm
  • Connector Lugs: Equipped with 76.2mm pitch connector lugs for secure assembly

Frames:

  • Material: Constructed from durable galvanized steel
  • Load Capacity: Each frame can hold a maximum weight of 10000KG per side, with a uniform load
  • Maximum Beam Height: Bottom beam should not exceed 1800mm for optimal stability

Pallet Racking Chipboard:

  • Dimensions: 2570mm x 835mm x 18mm
  • Usage: Designed for use as a decking option for the pallet racking system

Please note that these specifications are subject to standard manufacturing tolerances.



For additional details about the particleboard utilised, please click here.

ReadyRack is Melbourne based and deliver state-wide.



INTERSTATE AND COUNTRY VICTORIA CUSTOMERS PLEASE READ:



ReadyRack offers interstate delivery services. Please add your items to the cart and select Request Quote.



Alternatively, if you would like to use your own freight provider, please select “pick up” at the checkout and email info@readyrack.net.au for pack size.



We endeavour to deliver the goods between the hours of 8:00am and 4:00pm Monday to Friday (excluding Public Holidays and non-trading days)



A forklift must be supplied by the customer at the time of the delivery, unless stated/discussed prior and arranged by ReadyRack.



HAND UNLOAD

In accordance with OH&S and ReadyRack policies, no one is allowed on the ReadyRack truck.



Our drivers are not required to hand unload. Please make sure you have at least two abled bodies to unload the truck.



We do not do curb side delivery/drop off. If your delivery arrives and there are no one/no abled bodies to unload the contents, our truck will return to the warehouse where the customer can collect or reschedule delivery at their own expense.

Heavy Duty Shelving Add On Bay 3658mm High with Board

SKU: HDAB.838.3658.2591.CW4.WB
Regular price $892.00
Sale price $892.00 Regular price
GST included.

Visit our warehouse and inspect the stock.

Delivery services over all Australia.

Racking is certified to the latest steel standards.

Everything in stock and ready to go!
