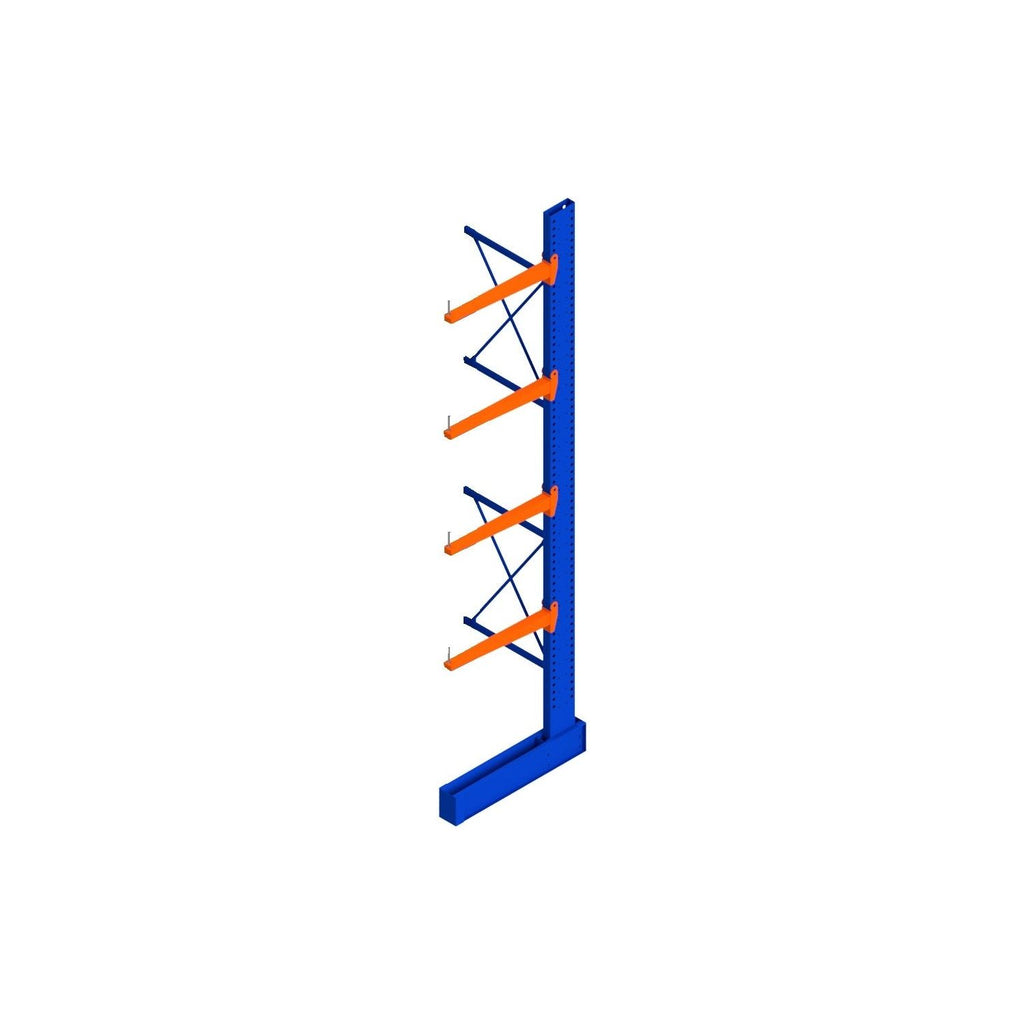

Heavy Duty Cantilever Racking Add On Bay

Roll over image to zoom in Click on image to zoom

Heavy Duty Cantilever Racking Add On Bay

SKU: HDC13658900900.2A.AO

Price:

$619.00

Tax included

Stock:

In Stock

Quantity:

SELECT A COLUMN HEIGHT: 3658mm High

SELECT A BAY WIDTH: 900mm Wide

SELECT AN ARM DEPTH: 900mm Deep

Variant

Pickup available at 45 Gaine Road Dandenong South, 3175

Usually ready in 2-4 days

Heavy duty cantilever racking is a versatile and durable storage solution for large and heavy items. With its sturdy, single-sided design and adjustable arms, it is perfect for storing long and bulky items such as steel bars, lumber, and pipes. The cantilever arms extending from vertical columns, creating a clear and accessible storage space that allows for easy loading and unloading with forklifts or cranes. The heavy-duty construction and powder-coated finish ensure the longevity and durability of the racking system, making it an ideal choice for warehouses, manufacturing facilities, and other industrial applications. With customisable configurations and a range of sizes and load capacities, heavy duty cantilever racking can be tailored to fit any storage needs.

Not quite what you're looking for? Contact us!

What’s Included

Single Sided Package Includes: 1 x columns, 1 x single sided bases, cross bracing, arms and all hardware for assembly including levelling plates and floor fixings.

Safe Working Load Sign included

Please note:

Arms per Column

All 3658mm hight columns come with 2 arms per column
All 4877mm hight columns come with 3 arms per column
All 5719mm hight columns come with 4 arms per column
You can purchase additional arms if required.

Not quite what you're looking for? Contact us!

Specifications

Weight Loading for Columns

3658mm high columns - max load per column with 900mm deep arm = 6800kgs
3658mm high columns - max load per column with 1200mm deep arm = 5400kgs

4877mm high columns - max load per column with 900mm deep arm = 5700kgs
4877mm high columns - max load per column with 1200mm deep arm = 4500kgs

5791mm high columns - max load per column with 900mm deep arm = 5100kgs
5791mm high columns - max load per column with 1200mm deep arm = 4000kgs

Weight Loading for Arms

Each 900mm arm has a UDL of 1500kgs
Each 1200mm arm has a UDL of 1020kgs

UDL = (Uniformed Distributed Load)

Measurments
Overall depth for 900mm deep = 1290mm
Overall depth for 1200mm deep = 1590mm
Overall width for 900mm wide bay = 1110mm
Overall width for 1200mm wide bay = 1410mm
Overall width for 1500mm wide bay = 1710mm
Overall width for 1800mm wide bay = 2010mm
