Heavy duty cantilever racking is a versatile and durable storage solution for large and heavy items. With its sturdy, single-sided design and adjustable arms, it is perfect for storing long and bulky items such as steel bars, lumber, and pipes. The cantilever arms extending from vertical columns, creating a clear and accessible storage space that allows for easy loading and unloading with forklifts or cranes. The heavy-duty construction and powder-coated finish ensure the longevity and durability of the racking system, making it an ideal choice for warehouses, manufacturing facilities, and other industrial applications. With customisable configurations and a range of sizes and load capacities, heavy duty cantilever racking can be tailored to fit any storage needs.

Not quite what you're looking for? Contact us!

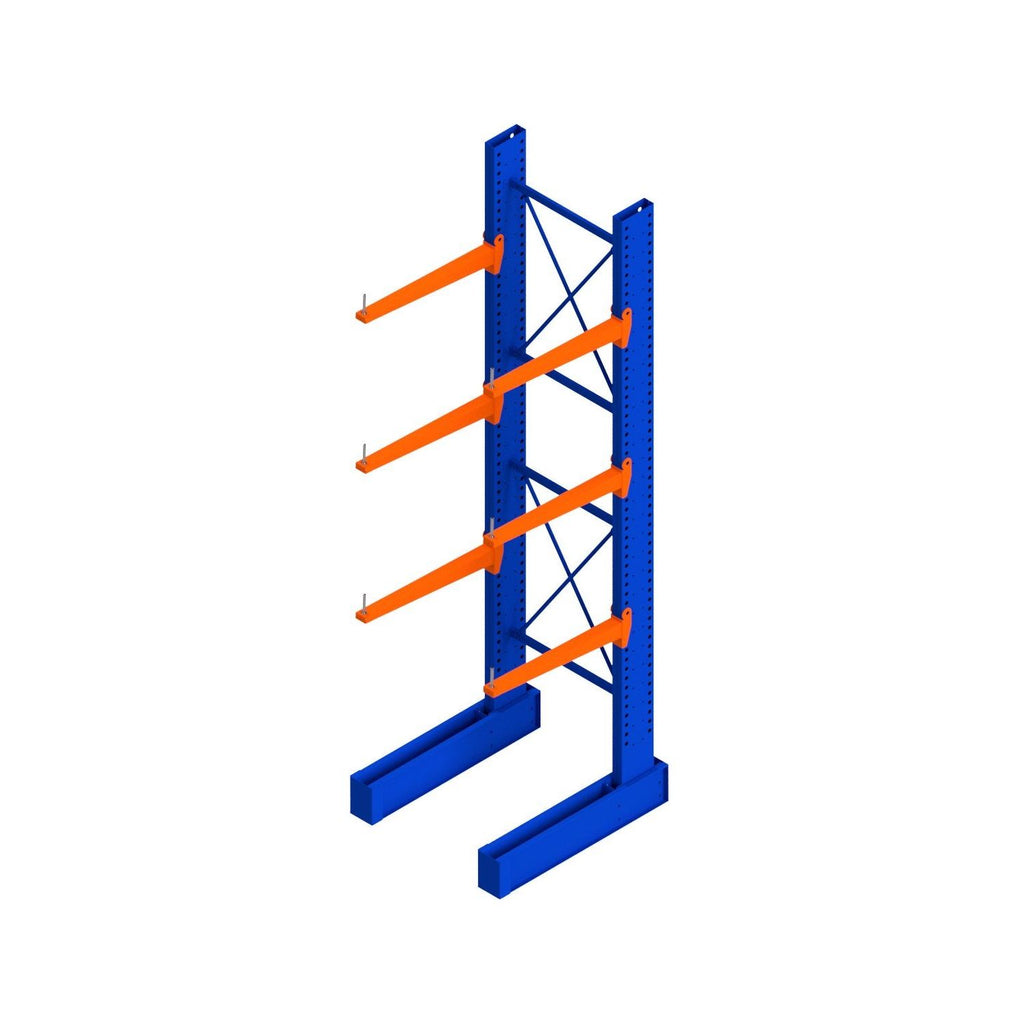

Single Sided Package Includes: 2 x columns, 2 x single sided bases, cross bracing, arms and all hardware for assembly including levelling plates and floor fixings.

Safe Working Load Sign included

Please note:

Arms per Column

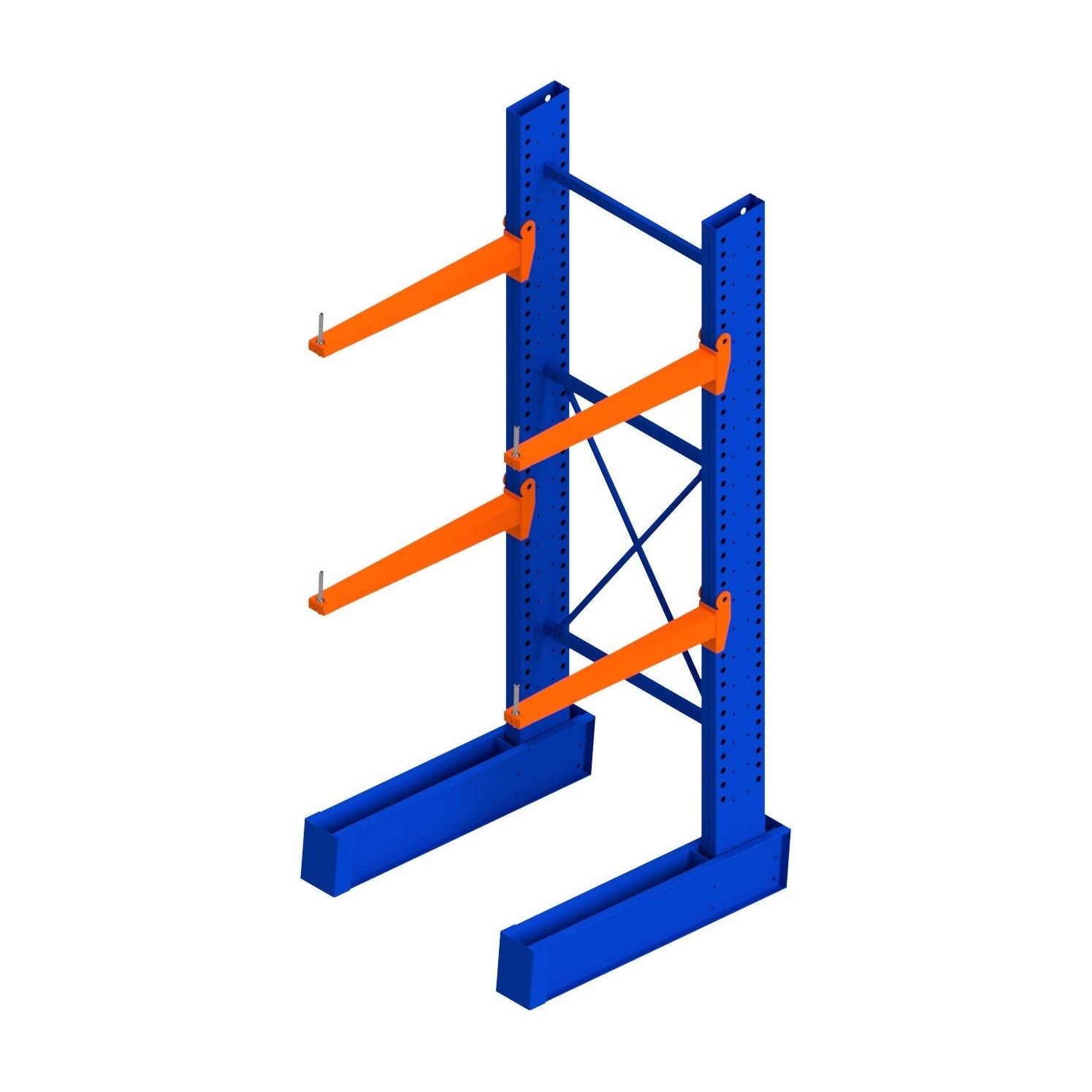

All 3658mm hight columns come with 2 arms per column
All 4877mm hight columns come with 3 arms per column

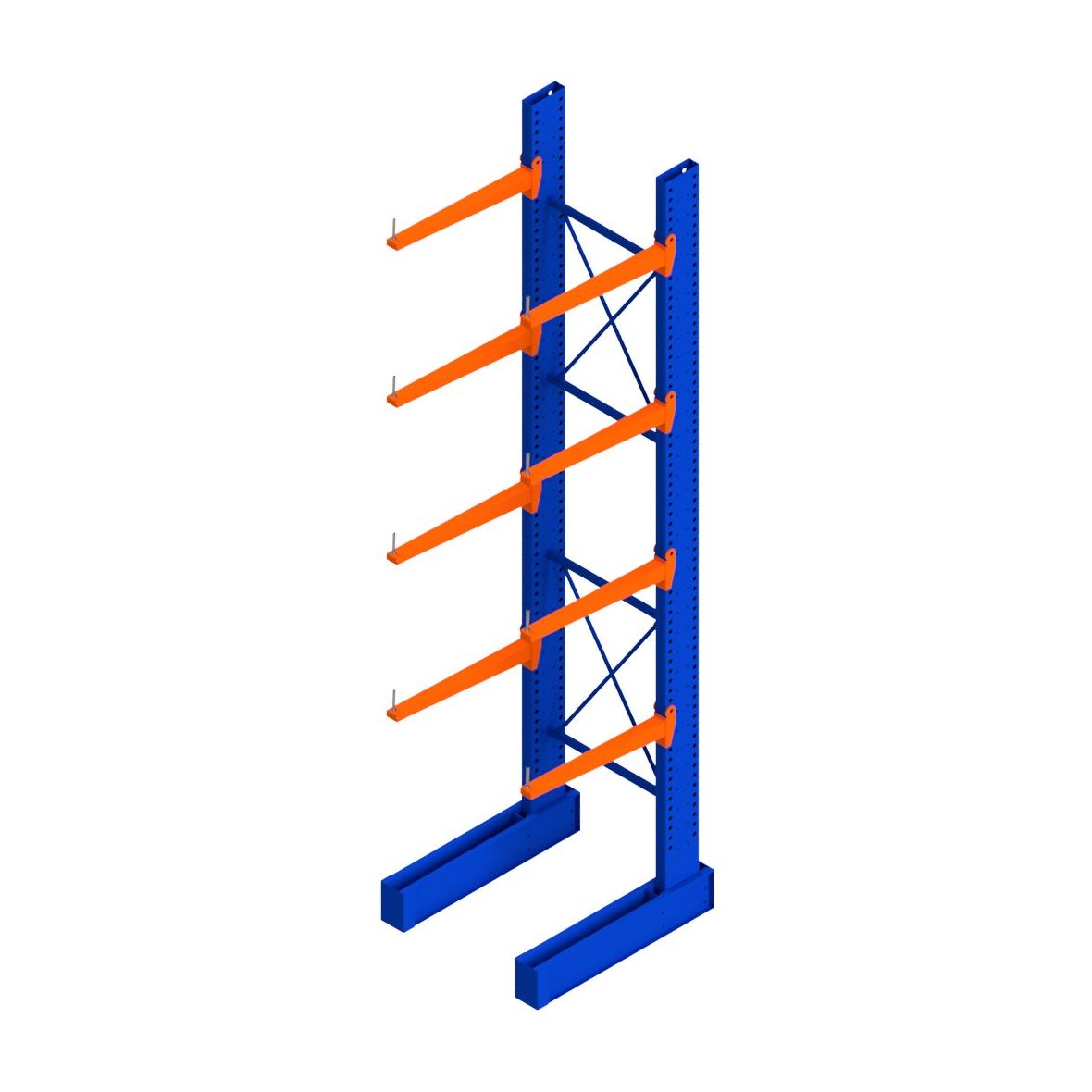

All 5719mm hight columns come with 4 arms per column
You can purchase additional arms if required.


Not quite what you're looking for? Contact us!


Weight Loading for Columns

3658mm high columns - max load per column with 900mm deep arm = 6800kgs
3658mm high columns - max load per column with 1200mm deep arm = 5400kgs

4877mm high columns - max load per column with 900mm deep arm = 5700kgs
4877mm high columns - max load per column with 1200mm deep arm = 4500kgs

5791mm high columns - max load per column with 900mm deep arm = 5100kgs
5791mm high columns - max load per column with 1200mm deep arm = 4000kgs

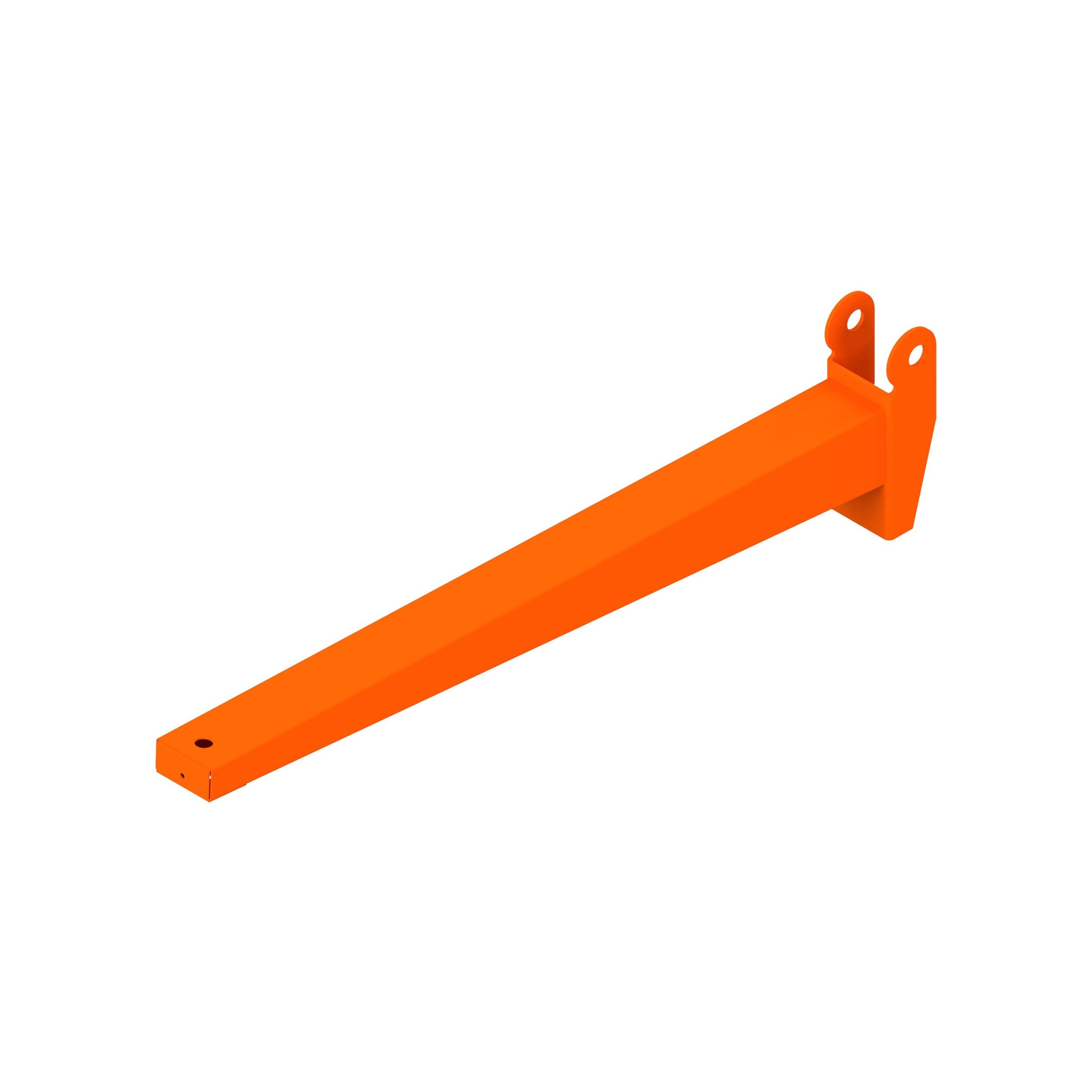

Weight Loading for Arms

Each 900mm arm has a UDL of 1500kgs = 3000kgs per level over 2 columns (not exceding the max load per column)
Each 1200mm arm has a UDL of 1020kgs = 2040kgs per level over 2 columns (not exceding the max load per column)


UDL = (Uniformed Distributed Load)


Measurments


Overall depth for 900mm deep = 1290mm
Overall depth for 1200mm deep = 1590mm


Overall width for 900mm wide bay = 1110mm
Overall width for 1200mm wide bay = 1410mm
Overall width for 1500mm wide bay = 1710mm
Overall width for 1800mm wide bay = 2010mm


ReadyRack is Melbourne based and deliver state-wide.


INTERSTATE AND COUNTRY VICTORIA CUSTOMERS PLEASE READ:


ReadyRack offers interstate delivery services. Please add your items to the cart and select Request Quote.


Alternatively, if you would like to use your own freight provider, please select “pick up” at the checkout and email info@readyrack.net.au for pack size.


We endeavour to deliver the goods between the hours of 8:00am and 4:00pm Monday to Friday (excluding Public Holidays and non-trading days)


A forklift must be supplied by the customer at the time of the delivery, unless stated/discussed prior and arranged by ReadyRack.


HAND UNLOAD

In accordance with OH&S and ReadyRack policies, no one is allowed on the ReadyRack truck.


Our drivers are not required to hand unload. Please make sure you have at least two abled bodies to unload the truck.


We do not do curb side delivery/drop off. If your delivery arrives and there are no one/no abled bodies to unload the contents, our truck will return to the warehouse where the customer can collect or reschedule delivery at their own expense.

Heavy Duty Cantilever Racking Starter Bay

SKU: HDC13658900900.2A
Regular price $1,650.00
Sale price $1,650.00 Regular price
GST included.

Visit our warehouse and inspect the stock.

Delivery services over all Australia.

Racking is certified to the latest steel standards.

Everything in stock and ready to go!
