Heavy Duty Cantilever Racking Three Bay Package

Roll over image to zoom in Click on image to zoom

Heavy Duty Cantilever Racking Three Bay Package

SKU: HDC33658900900.2A

Price:

$2,466.00

Tax included

Stock:

In Stock

Quantity:

SELECT A COLUMN HEIGHT: 3658mm High (Two arms per column)

SELECT A BAY WIDTH: 900mm Wide Bracing

SELECTAN ARM DEPTH: 900mm Deep

Variant

Pickup available at 45 Gaine Road Dandenong South, 3175

Usually ready in 2-4 days

Our Heavy Duty Cantilever Racking is the ultimate solution for storing long, bulky, or heavy items like steel bars, timber, and pipes. Its single-sided, robust design with adjustable arms offers a clear, open storage area, allowing for easy access and efficient loading with forklifts or cranes. Built to withstand industrial demands, this system features a durable powder-coated finish to ensure long-lasting performance. Customisable and available in various sizes and load capacities, it's an ideal fit for warehouses, factories, and industrial applications.

Not quite what you're looking for? Contact us!

What’s Included

Package Includes: 3 x columns, 3 x single sided bases, 2 x cross bracing, arms and all hardware for assembly including levelling plates and floor fixings.

Arms per Column

3 x vertical columns
3 x single-sided bases
2 x cross bracing sets
Cantilever arms
Hardware for assembly, including levelling plates and floor fixings
Safe Working Load sign

Specifications

Arms per Column:

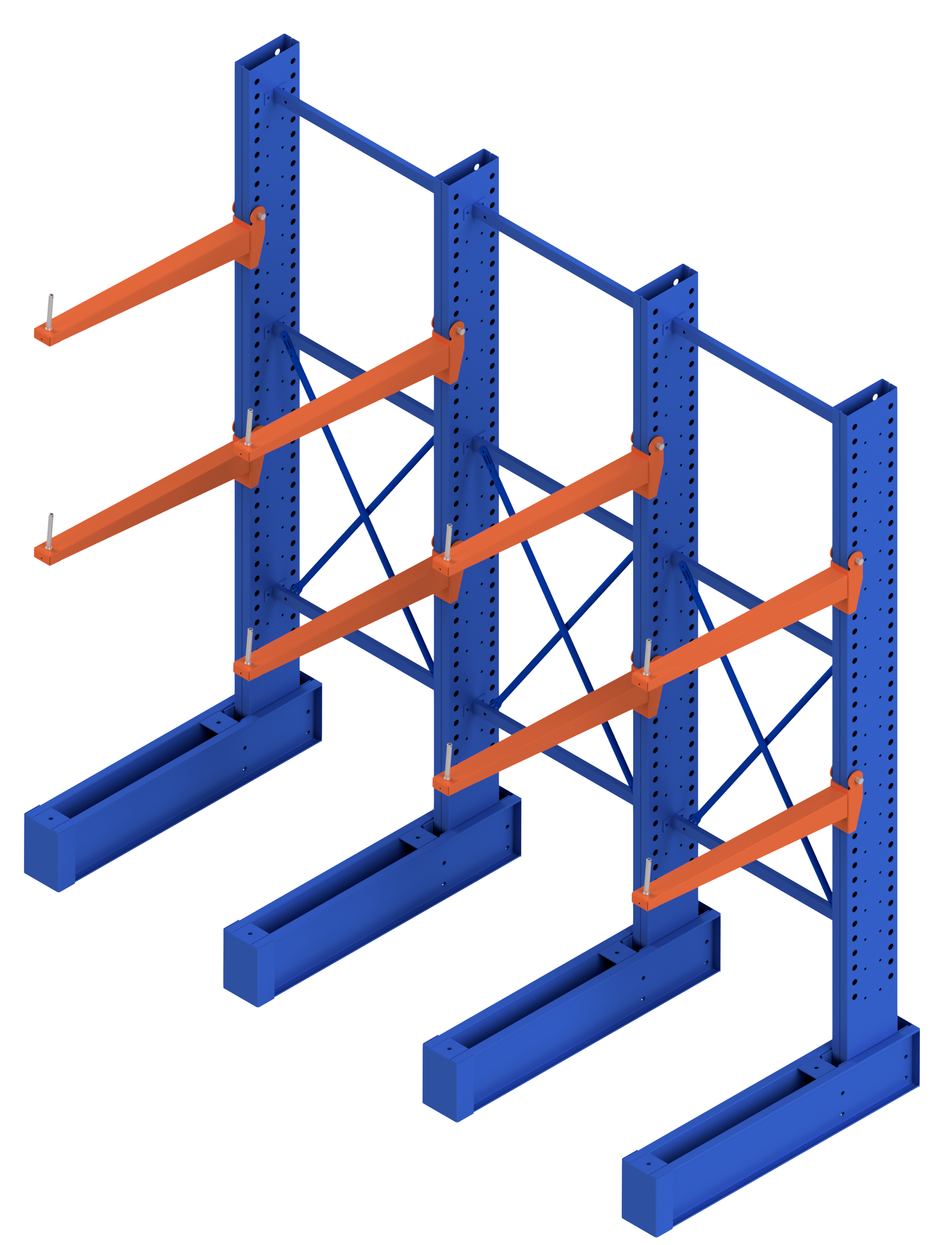

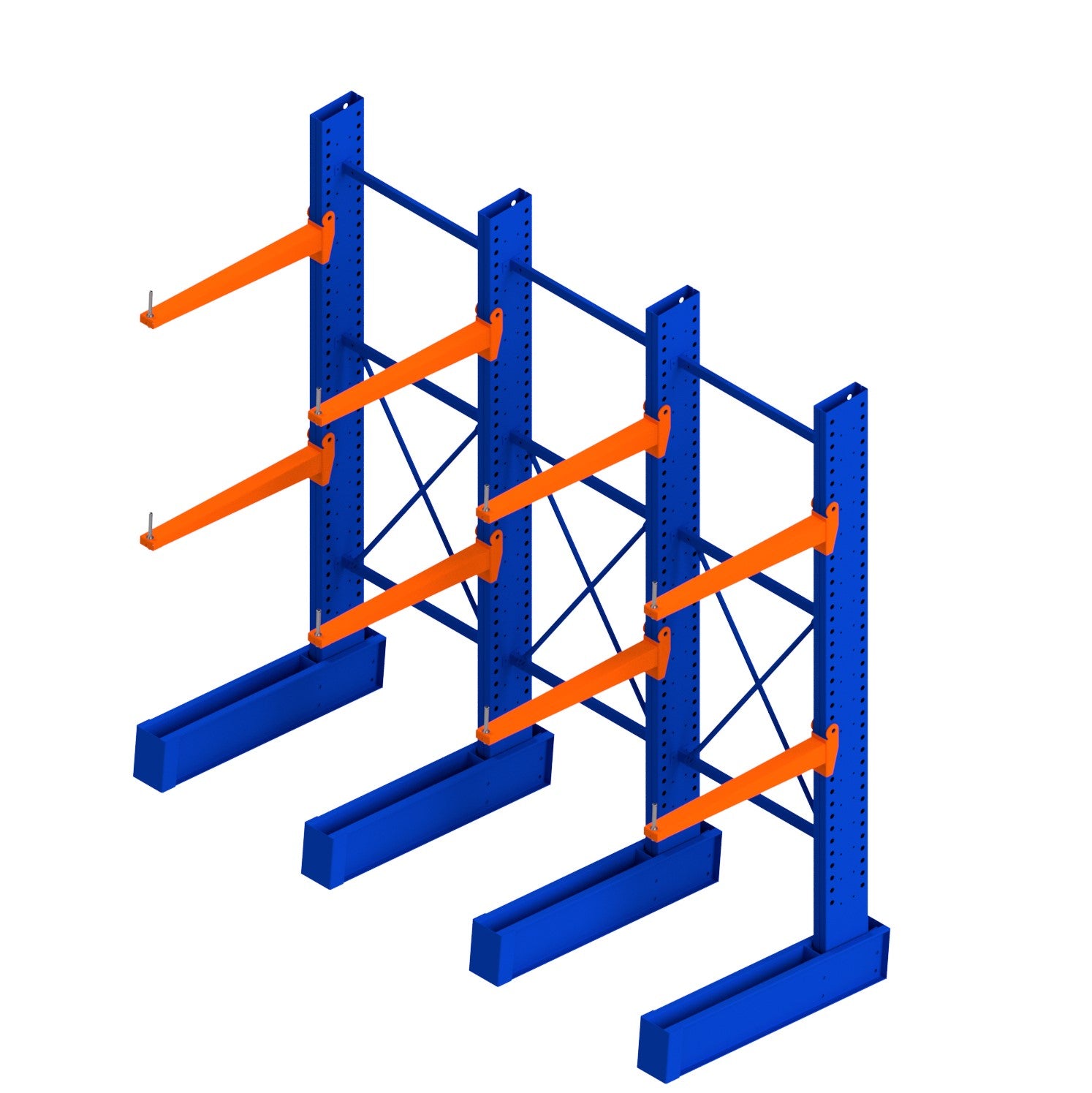

3658mm high columns: 2 arms

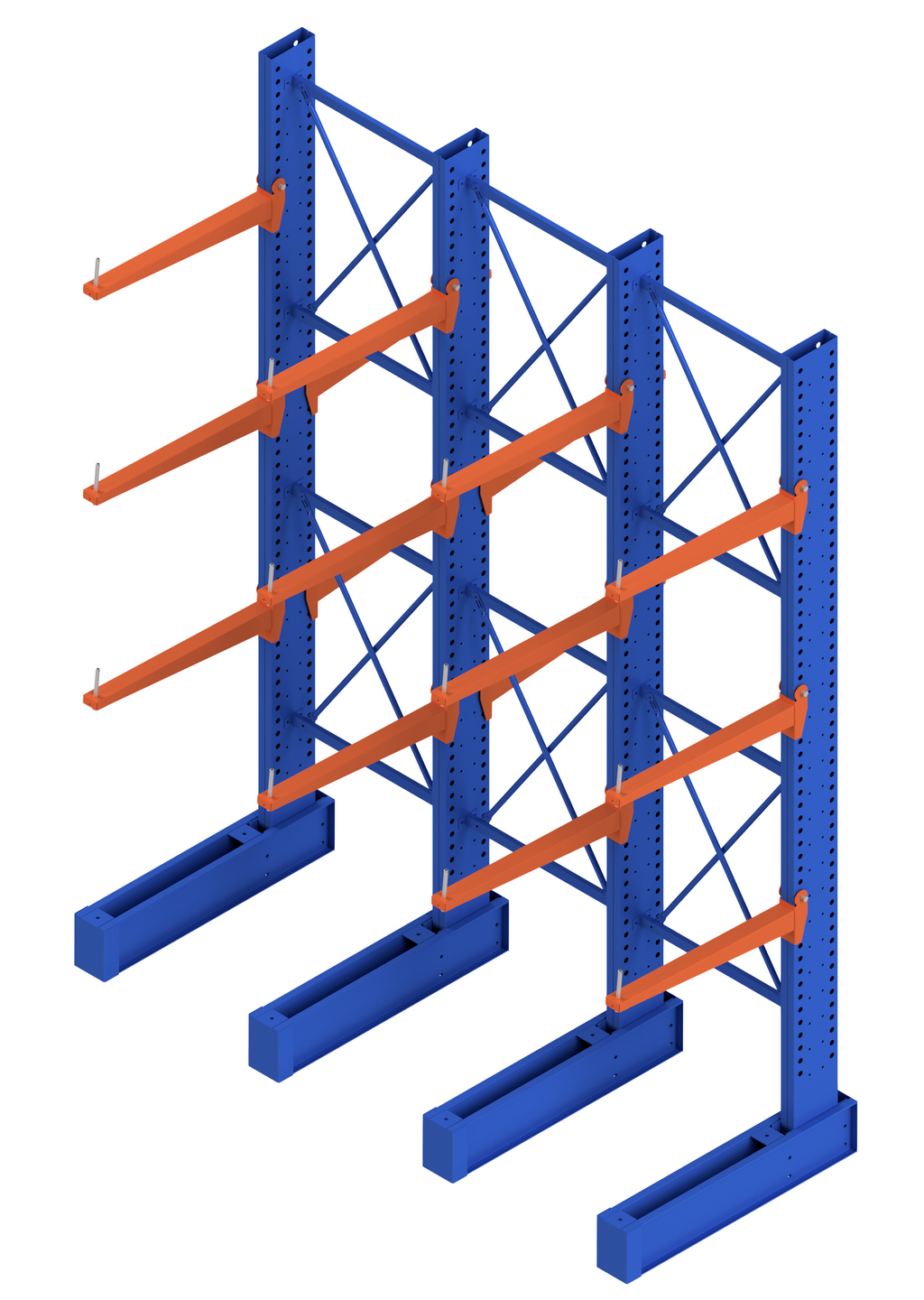

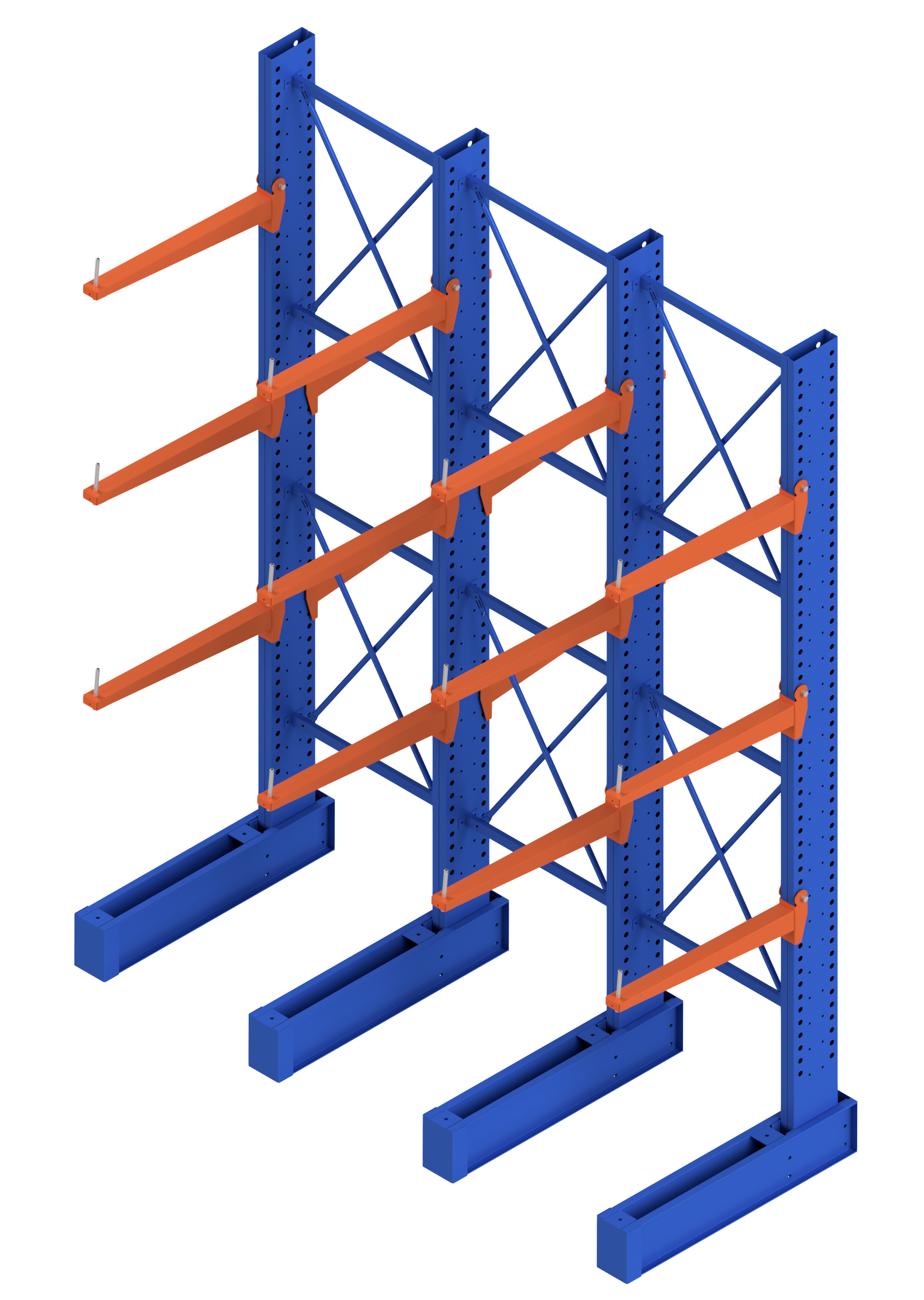

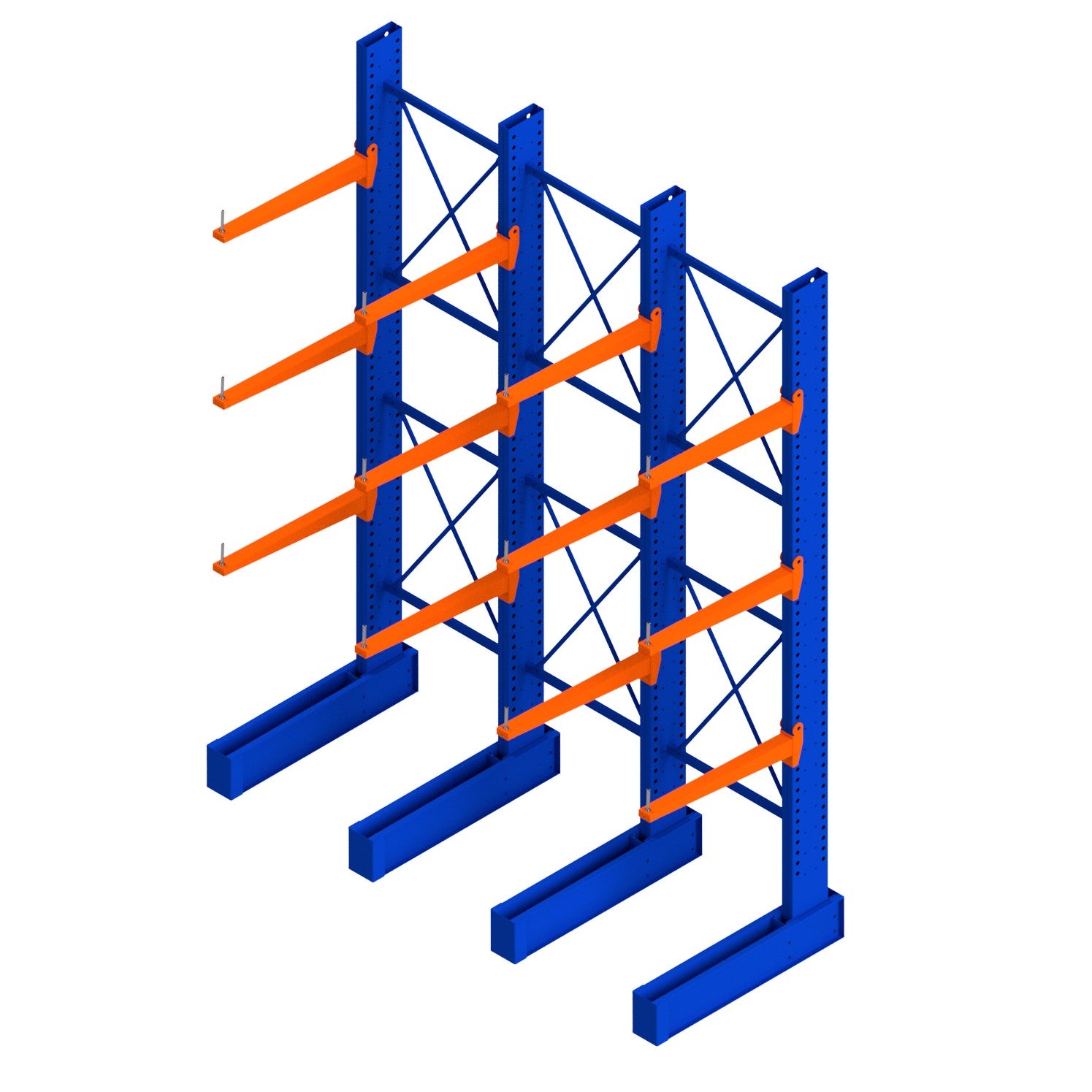

4877mm high columns: 3 arms

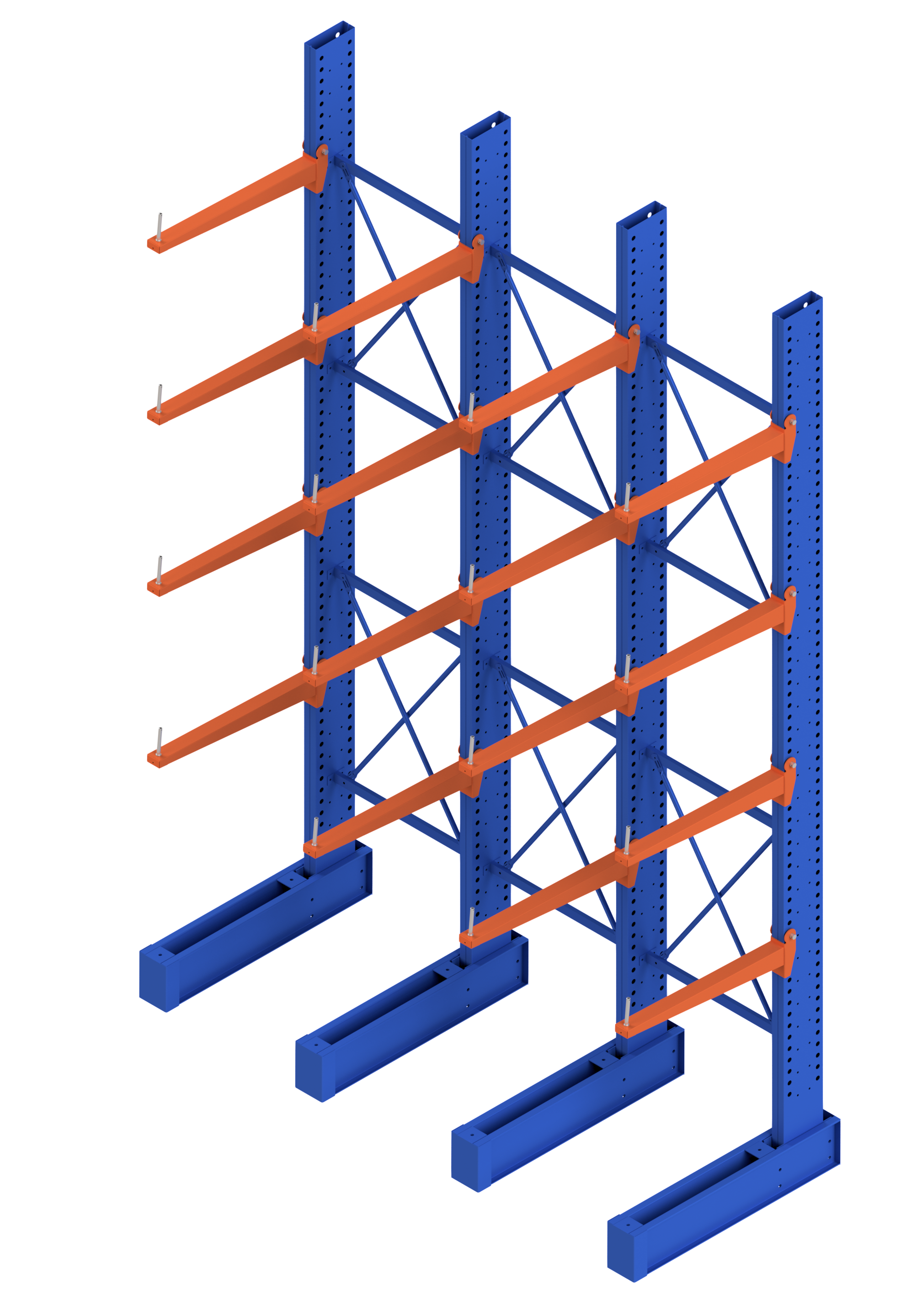

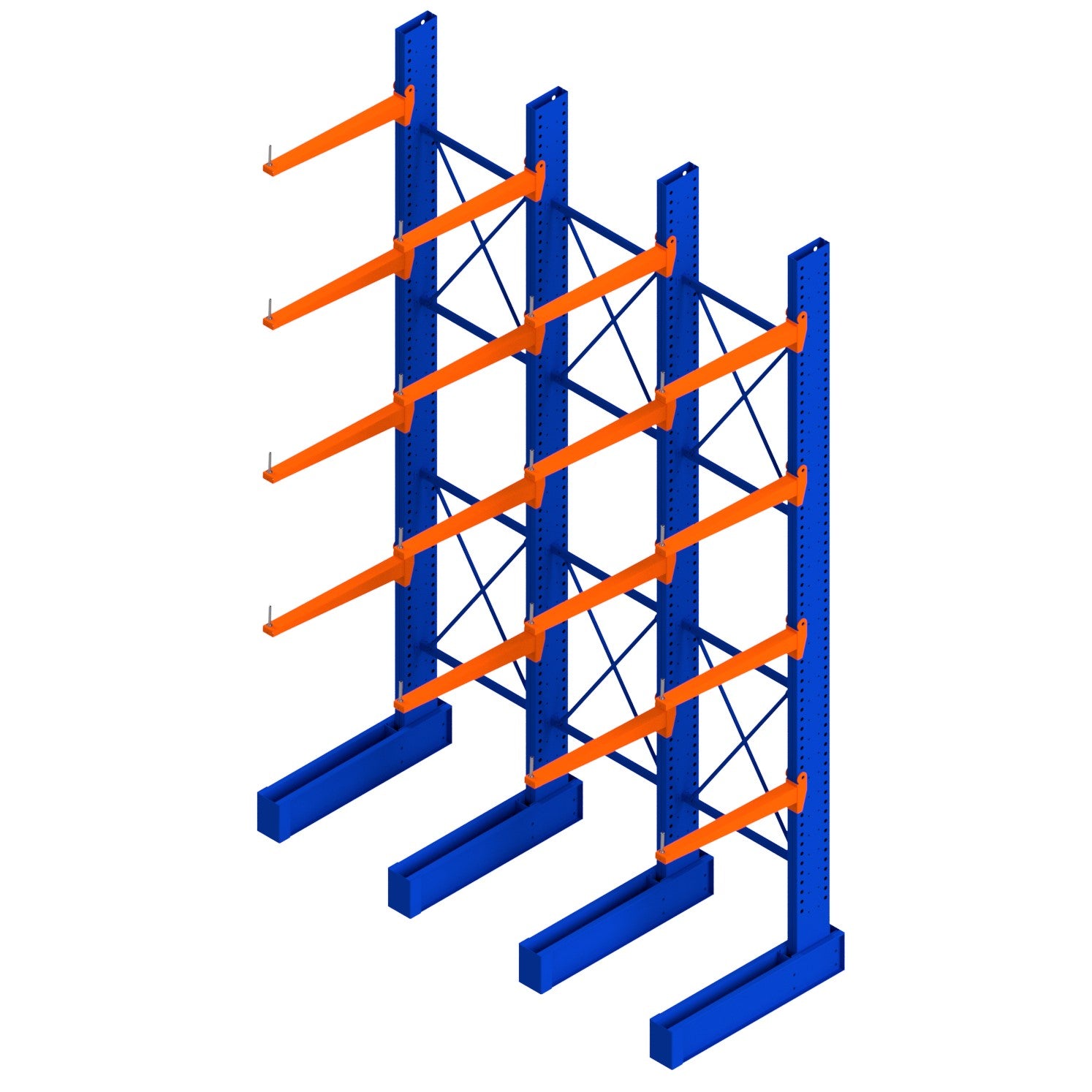

5791mm high columns: 4 arms
Additional arms available for purchase

Column Load Capacity:

3658mm high columns: 6800kg (900mm arm), 5400kg (1200mm arm)
4877mm high columns: 5700kg (900mm arm), 4500kg (1200mm arm)
5791mm high columns: 5100kg (900mm arm), 4000kg (1200mm arm)

Arm Load Capacity (UDL):

900mm arm: 1500kg per arm (6000kg per level over 4 columns)
1200mm arm: 1020kg per arm (4080kg per level over 4 columns)

Overall length: 2610mm approx.
Overall depth for 900mm deep = 1290mm
Overall depth for 1200mm deep = 1590mm
