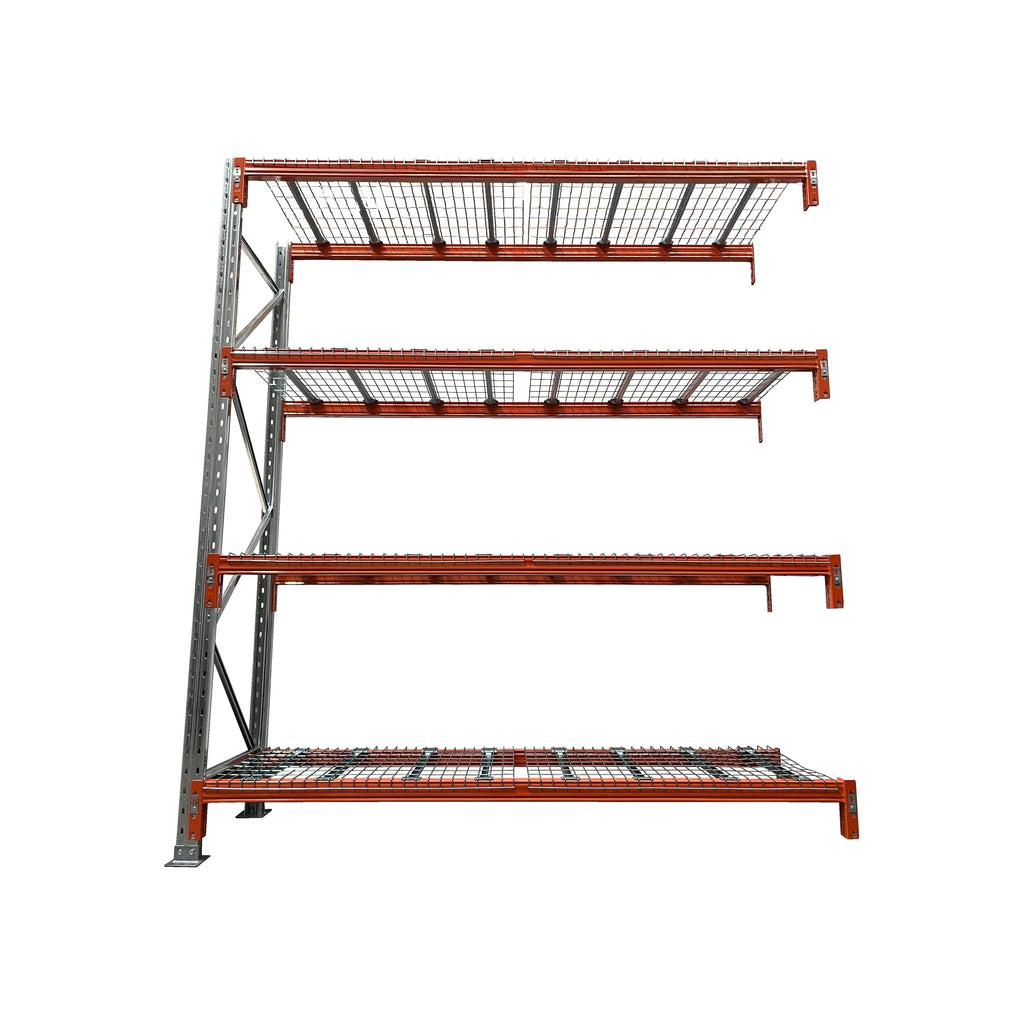

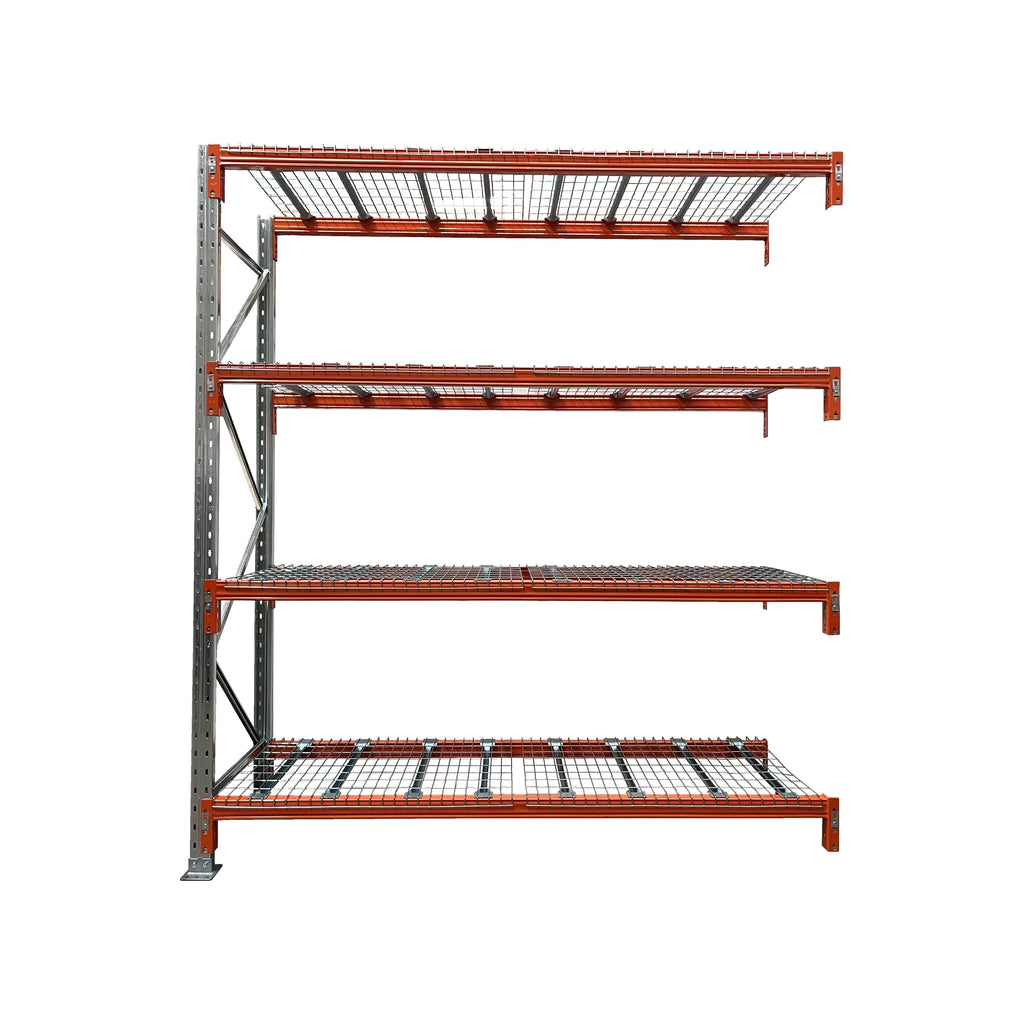

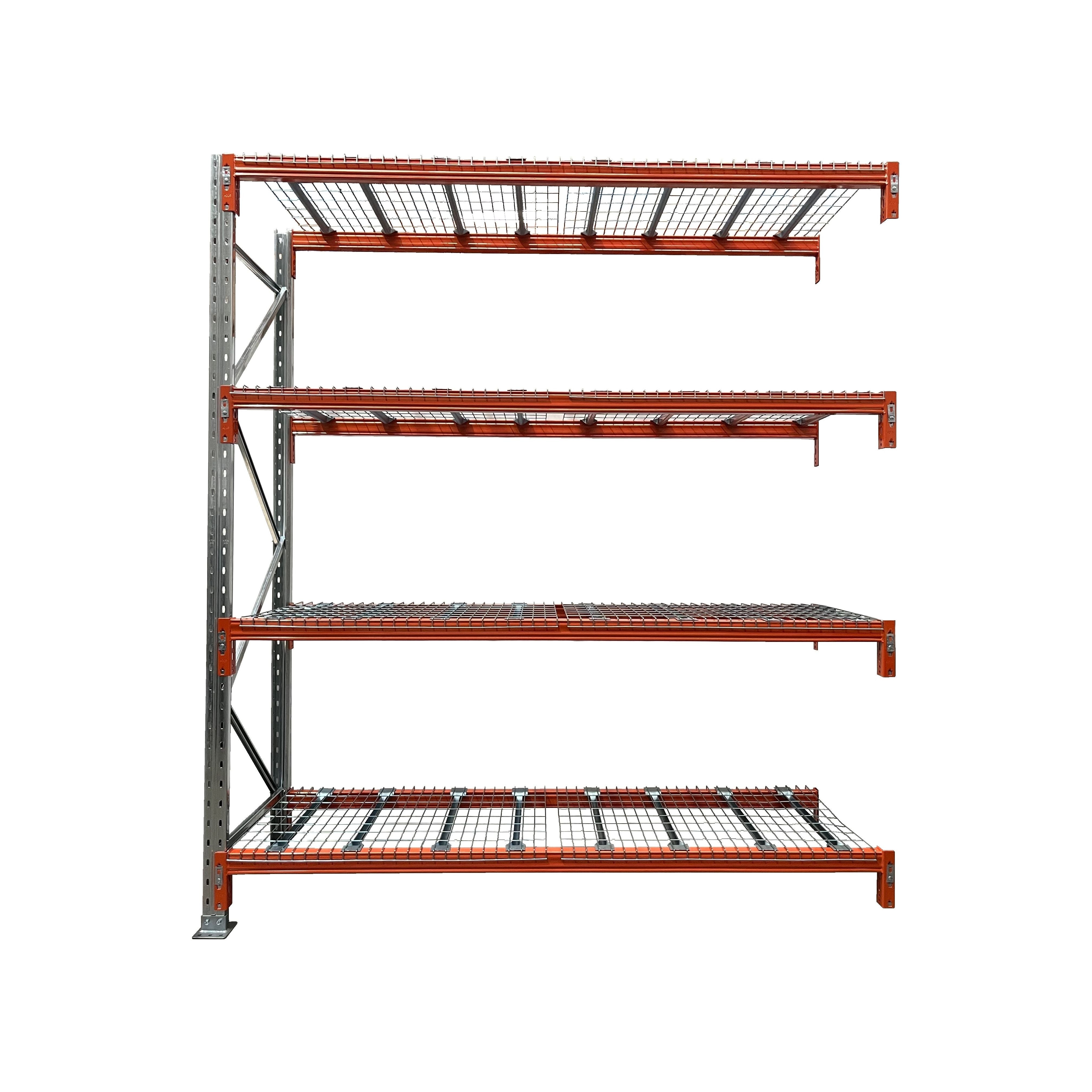

The Pallet Racking Add-On Bay with Mesh is a versatile storage solution designed to enhance the functionality of existing pallet racking systems. This add-on bay has a sturdy steel frame that seamlessly integrates with the main racking structure.

Installation of the Add-On Bay is straightforward, as it seamlessly attaches to the existing racking system without needing additional tools or modifications. The sturdy construction ensures the add-on bay can withstand the weight of heavy loads, providing reliable storage for a wide range of products.

With the Pallet Racking Add-On Bay with Mesh, businesses can optimise their storage space while improving safety and organisation. Whether used in warehouses, distribution centres, or manufacturing facilities, this add-on bay offers a practical and cost-effective solution for maximising storage efficiency while maintaining visibility and security.

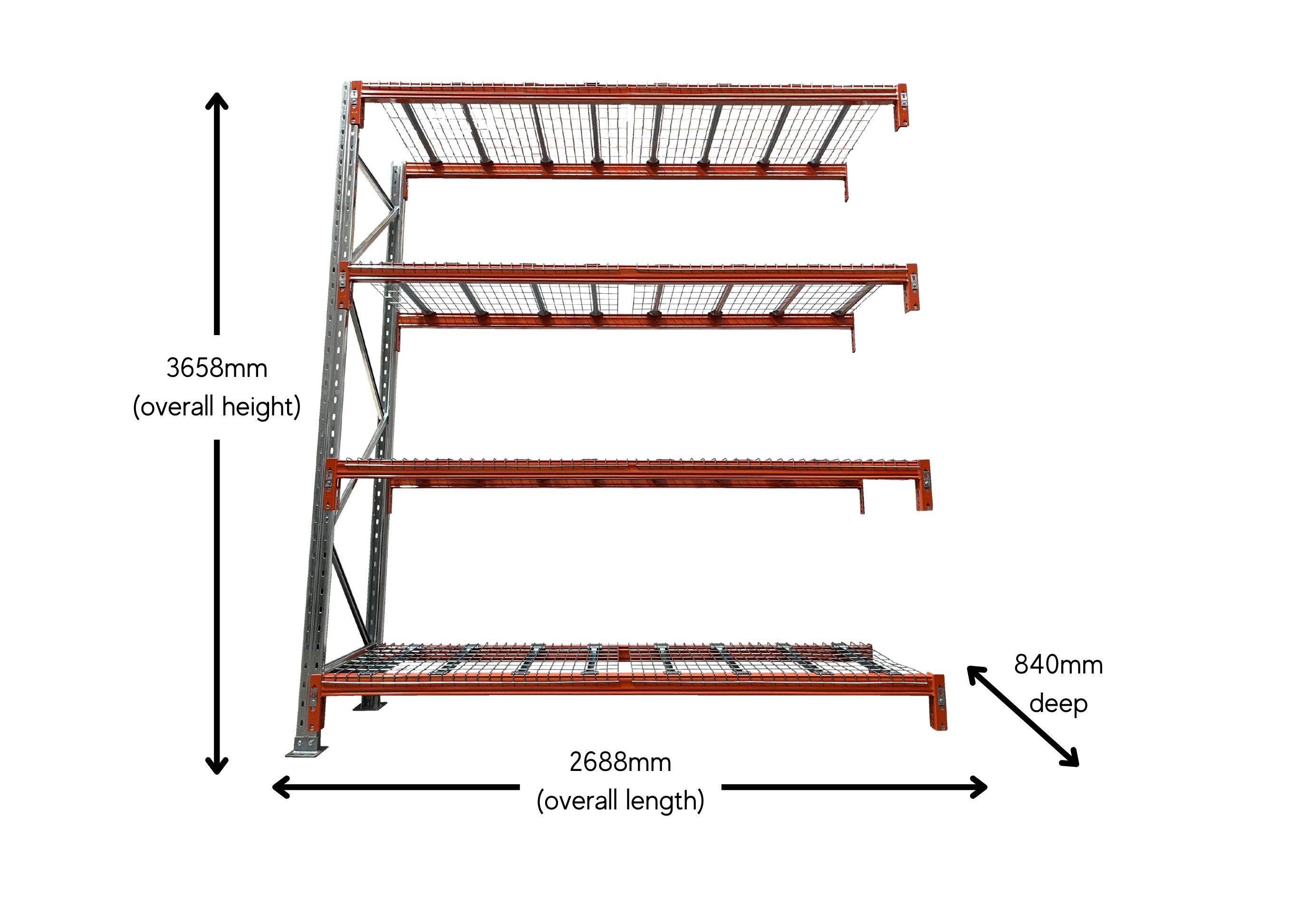

1 x Frame: Each galvanised frame measures 3658mm x 840mm, comes fully assembled and dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.

Includes Uprights, Bracing, Nuts and bolts, Base Plates, Leveling Plates, and Screw Bolt Floor Fixings.

8 x Beams: Measuring 2591mm x 63mm, each with two safety clips. These beams are designed to support your pallets or items and provide maximum weight-bearing capacity. With eight beams included, you'll have ample support for your storage needs.

8 x Mesh Decks: Our 4 bar Mesh deck, designed to fit standard pallet racking measuring 1250mm x 840mm. With a UDL rating of 1000 kg, our Mesh deck provides reliable and sturdy support for your products. Made from galvanised steel, it is durable and resistant to rust and corrosion. The 4 bar design ensures maximum airflow and visibility, making it ideal for storing and organising various products.

Beams:

Dimensions: 2591mm x 63mm
Load Capacity: Supports up to 917kg uniformly distributed load (UDL)
Pitch: 76.2mm
Connector Lugs: Equipped with 76.2mm pitch connector lugs for secure assembly

Frames:

Material: Constructed from durable galvanized steel
Load Capacity: Each frame can hold a maximum weight of 10000KG per side, with a uniform load
Maximum Beam Height: Bottom beam should not exceed 1800mm for optimal stability

Mesh Decking:

1250mm x 840mm. UDL rating of 1000Kgs
4 bar, made from galvanised steel
(mesh pitch measurements 100mm x 50mm)

Please note that these specifications are subject to standard manufacturing tolerances.

ReadyRack is Melbourne based and deliver state-wide.

INTERSTATE AND COUNTRY VICTORIA CUSTOMERS PLEASE READ:

ReadyRack offers interstate delivery services. Please add your items to the cart and select Request Quote.

Alternatively, if you would like to use your own freight provider, please select “pick up” at the checkout and email info@readyrack.net.au for pack size.

We endeavour to deliver the goods between the hours of 8:00am and 4:00pm Monday to Friday (excluding Public Holidays and non-trading days)

A forklift must be supplied by the customer at the time of the delivery, unless stated/discussed prior and arranged by ReadyRack.

HAND UNLOAD

In accordance with OH&S and ReadyRack policies, no one is allowed on the ReadyRack truck.

Our drivers are not required to hand unload. Please make sure you have at least two abled bodies to unload the truck.

We do not do curb side delivery/drop off. If your delivery arrives and there are no one/no abled bodies to unload the contents, our truck will return to the warehouse where the customer can collect or reschedule delivery at their own expense.
