Medium Duty Cantilever Racking - Starter Bay Double Sided

Roll over image to zoom in Click on image to zoom

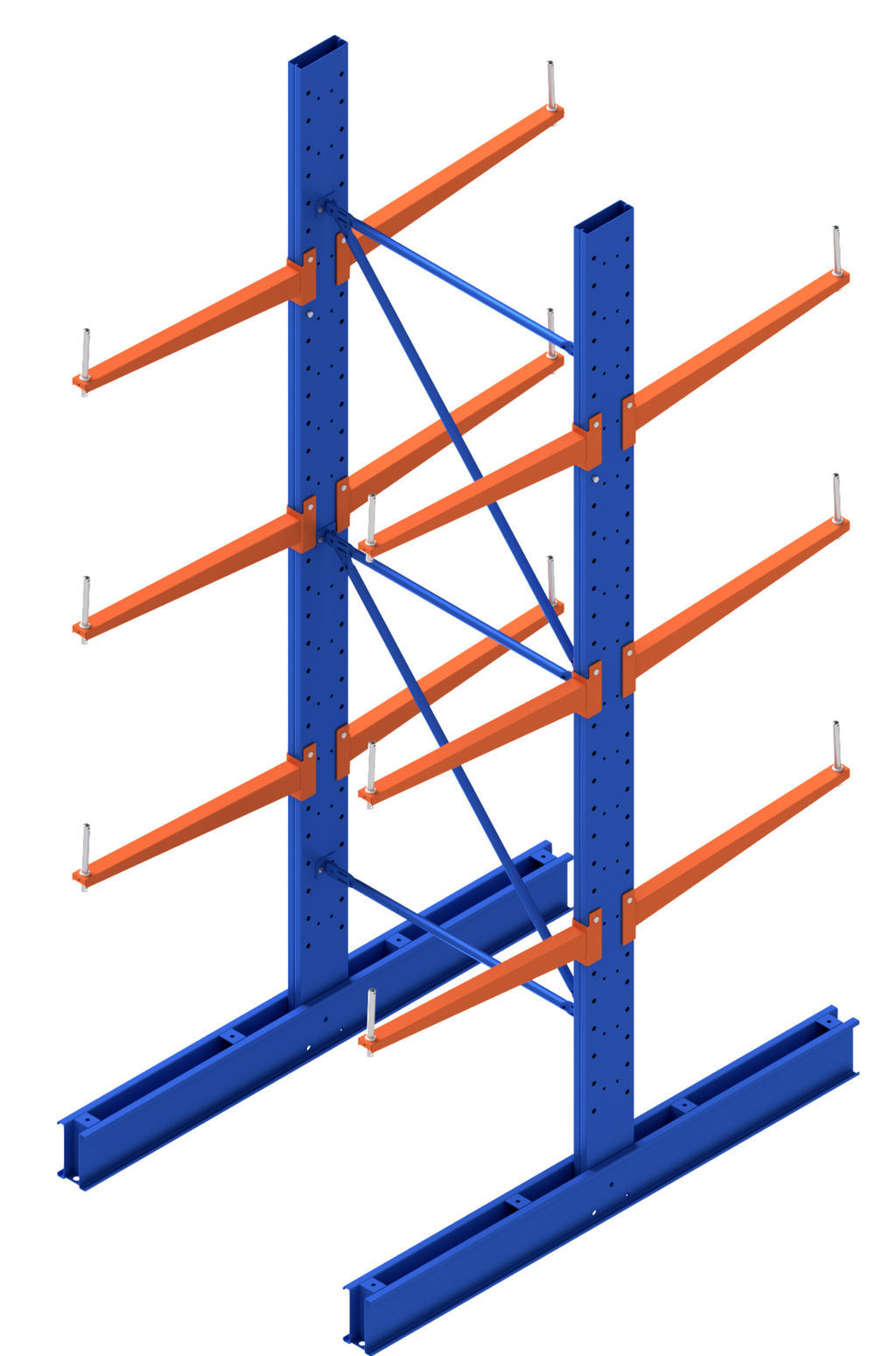

Medium Duty Cantilever Racking - Starter Bay Double Sided

SKU: MDCSBDS2400.900.900.PB.2APC

SELECT A COLUMN HEIGHT: 2400mm High

SELECT A BAY WIDTH: 900mm Wide

SELECT AN ARM DEPTH: 900mm Deep

Variant

Price:

$746.00

Tax included

Stock:

In stock

Quantity:

Pickup available at 45 Gaine Road Dandenong South, 3175

Usually ready in 2-4 days

Double-sided cantilever racking is an excellent storage solution for businesses handling long and heavy items like timber, pipes, and other bulky materials. Designed for maximum space utilisation, these racks provide easy access to goods from both sides, making them ideal for various commercial environments. The flexibility of this system allows for customisation in height, width, and depth, ensuring that your specific storage needs are met. Constructed from high-quality steel, our racking is built to withstand heavy loads and harsh conditions, making it a durable choice for warehouses, manufacturing plants, and more.

What’s Included

2 x Columns
2 x Double-sided bases
Cross bracing
Arms (4 arms per 2400mm high column, 6 arms per 3000mm and 3600mm high column)
All necessary hardware for assembly, including levelling plates and floor fixings
Safe Working Load Sign

To add more arms click here

Not quite what you're looking for? Contact us!

Specifications

Column Height & Arm Capacity:
- 2400mm high columns: 4 arms per column
- 3000mm and 3600mm high columns: 6 arms per column
- Additional arms available for purchase

Weight Loading per Column:
- 2400mm high column with 900mm deep arm: 2100kg
- 2400mm high column with 1200mm deep arm: 1700kg
- 3600mm high column with 900mm deep arm: 2800kg
- 3600mm high column with 1200mm deep arm: 2200kg

Weight Loading per Arm:
- 900mm arm: UDL of 480kg (960kg per level across 2 columns)
- 1200mm arm: UDL of 270kg (540kg per level across 2 columns)

Dimensions:
- Overall depth for 900mm deep: 1150mm
- Overall depth for 1200mm deep: 1450mm
- Overall width for 900mm wide bay: 1020mm
- Overall width for 1200mm wide bay: 1320mm
- Overall width for 1500mm wide bay: 1620mm

UDL = Uniformly Distributed Load
