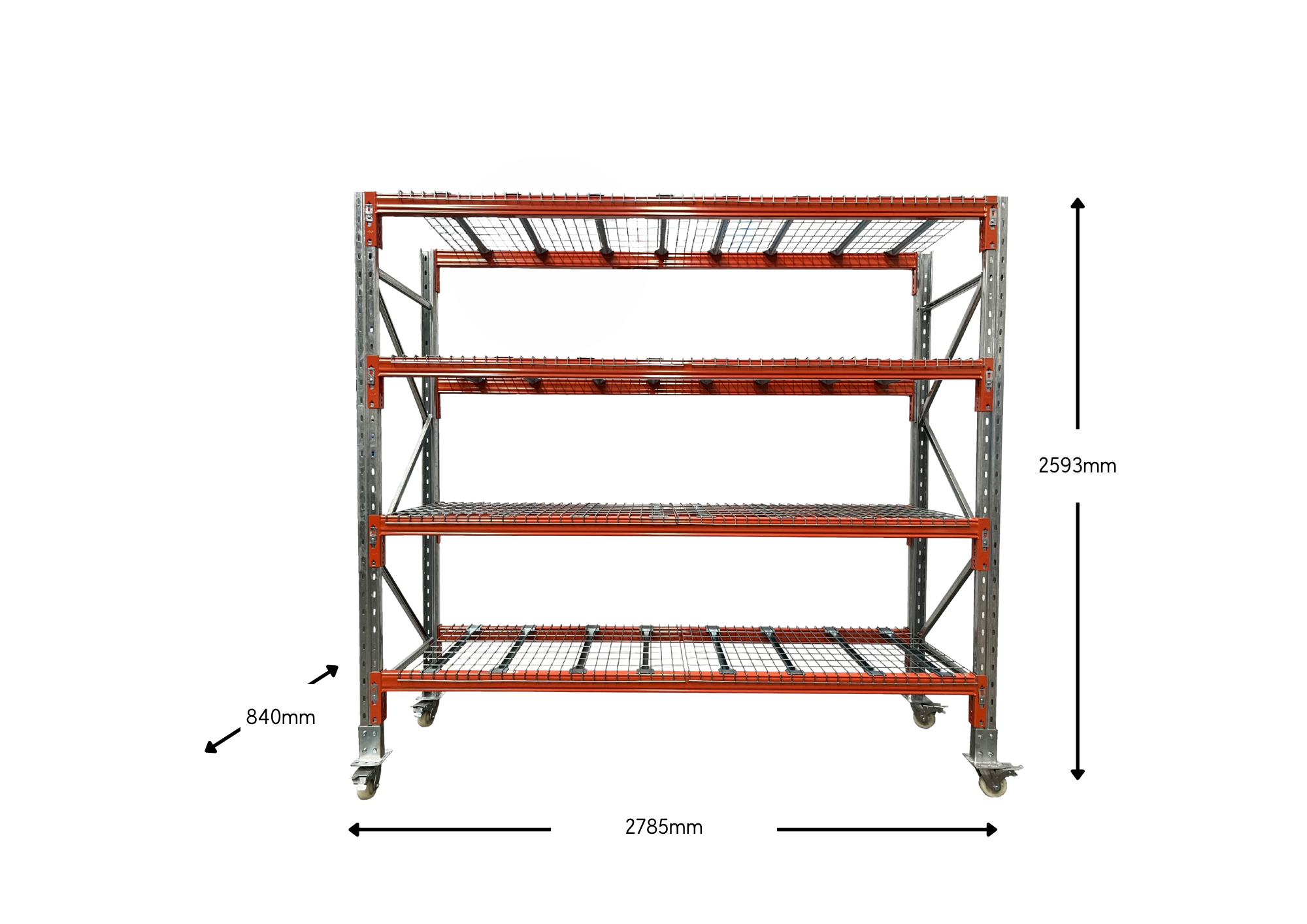

2 x Frames: Each galvanised frame measures 2438mm x 840mm, comes fully assembled and dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.
Includes uprights, bracing, nuts and bolts and lockable castor wheels on heavy duty base plates.
8 x Beams: Measuring 2591mm x 63mm, each with two safety clips. These beams are designed to support your pallets or items and provide maximum weight-bearing capacity. With eight beams included, you'll have ample support for your storage needs.
8 x Mesh Decks: Our 4 bar Mesh deck, designed to fit standard pallet racking measuring 1250mm x 840mm. With a UDL rating of 1000 kg, our Mesh deck provides reliable and sturdy support for your products. Made from galvanised steel, it is durable and resistant to rust and corrosion. The 4 bar design ensures maximum airflow and visibility, making it ideal for storing and organising various products.
Beams:
- Dimensions: 2591mm x 63mm
- Load Capacity: Supports up to 917kg uniformly distributed load (UDL)
- Pitch: 76.2mm
- Connector Lugs: Equipped with 76.2mm pitch connector lugs for secure assembly
Frames:
- Material: Constructed from durable galvanized steel
- Load Capacity: Each frame can hold a maximum weight of 10000KG per side, with a uniform load
- Maximum Beam Height: Bottom beam should not exceed 1800mm for optimal stability
Mesh Decking:
- 1250mm x 840mm. UDL rating of 1000Kgs
- 4 bar, made from galvanised steel
Please note that these specifications are subject to standard manufacturing tolerances.
ReadyRack is Melbourne based and deliver state-wide.
INTERSTATE CUSTOMERS PLEASE READ:
ReadyRack deliver interstate for orders over $2000.
Please add to quote for freight cost.
Alternatively for any other products to go interstate, please
select pick up. From there you can use your own freight company (email info@readyrack.net.au for pack size)
