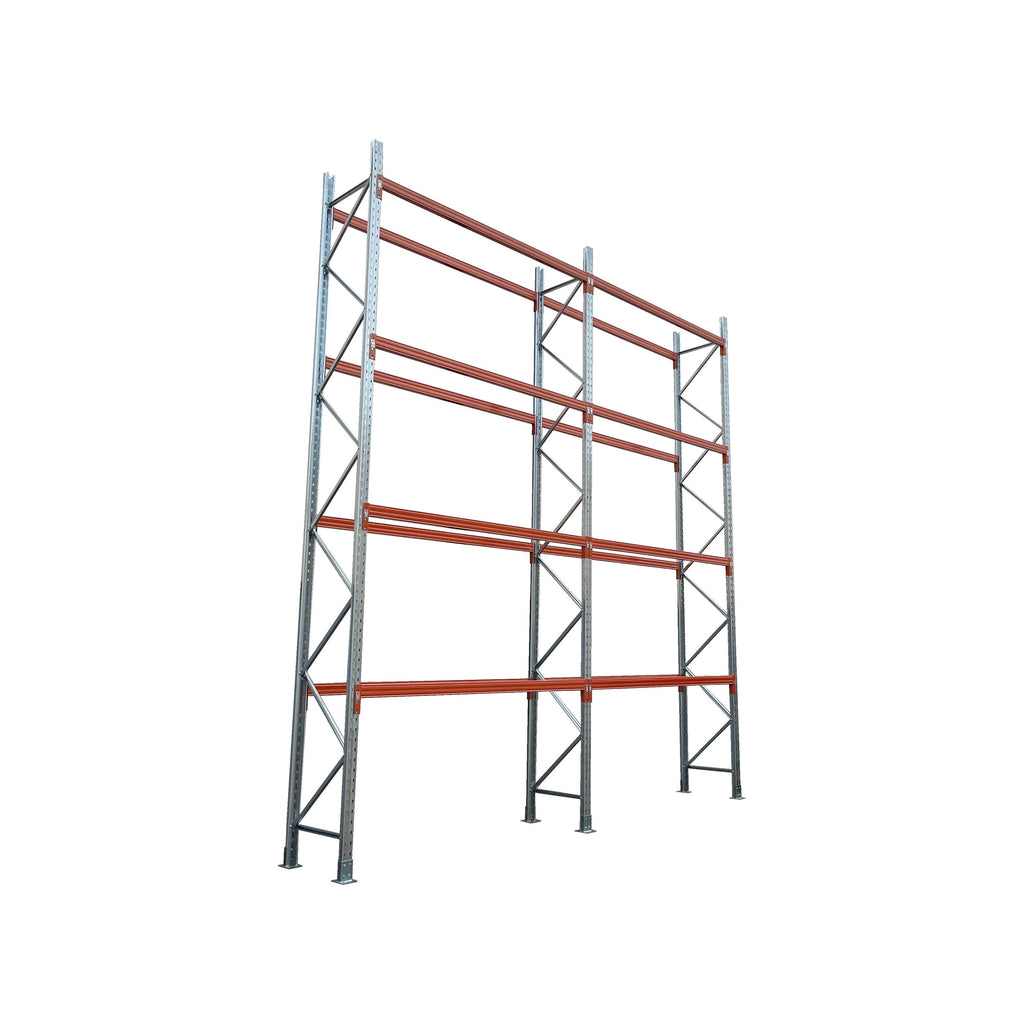

Introducing our dynamic two-bay Pallet Racking package, meticulously engineered to elevate your warehouse or industrial storage solution. Designed with precision and durability in mind, this system offers unparalleled organisation and efficiency.

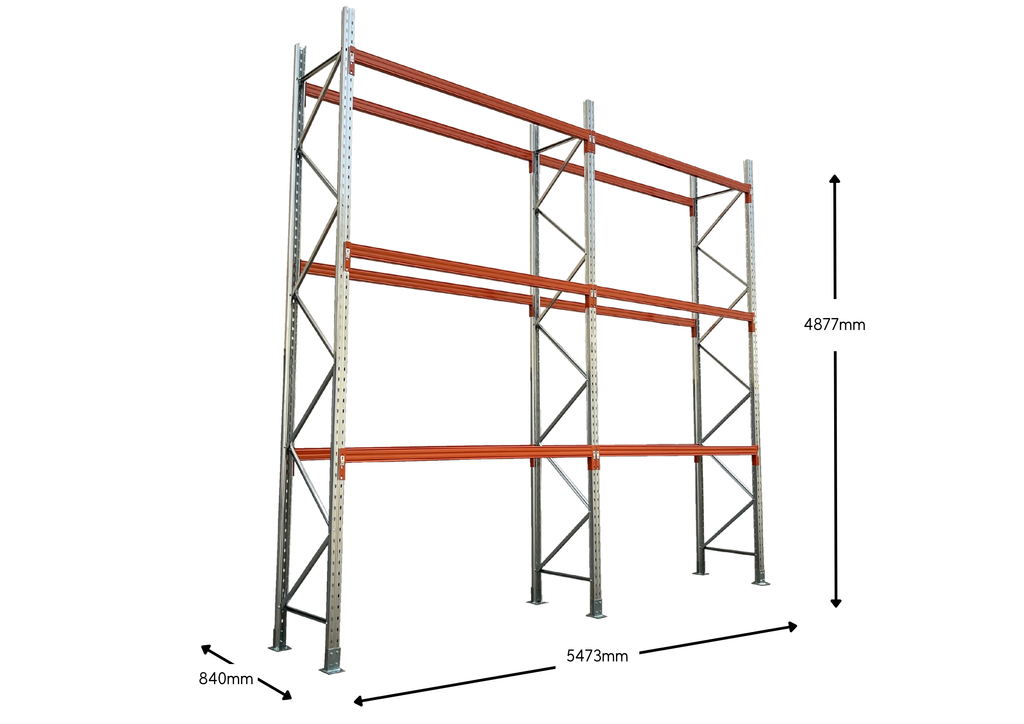

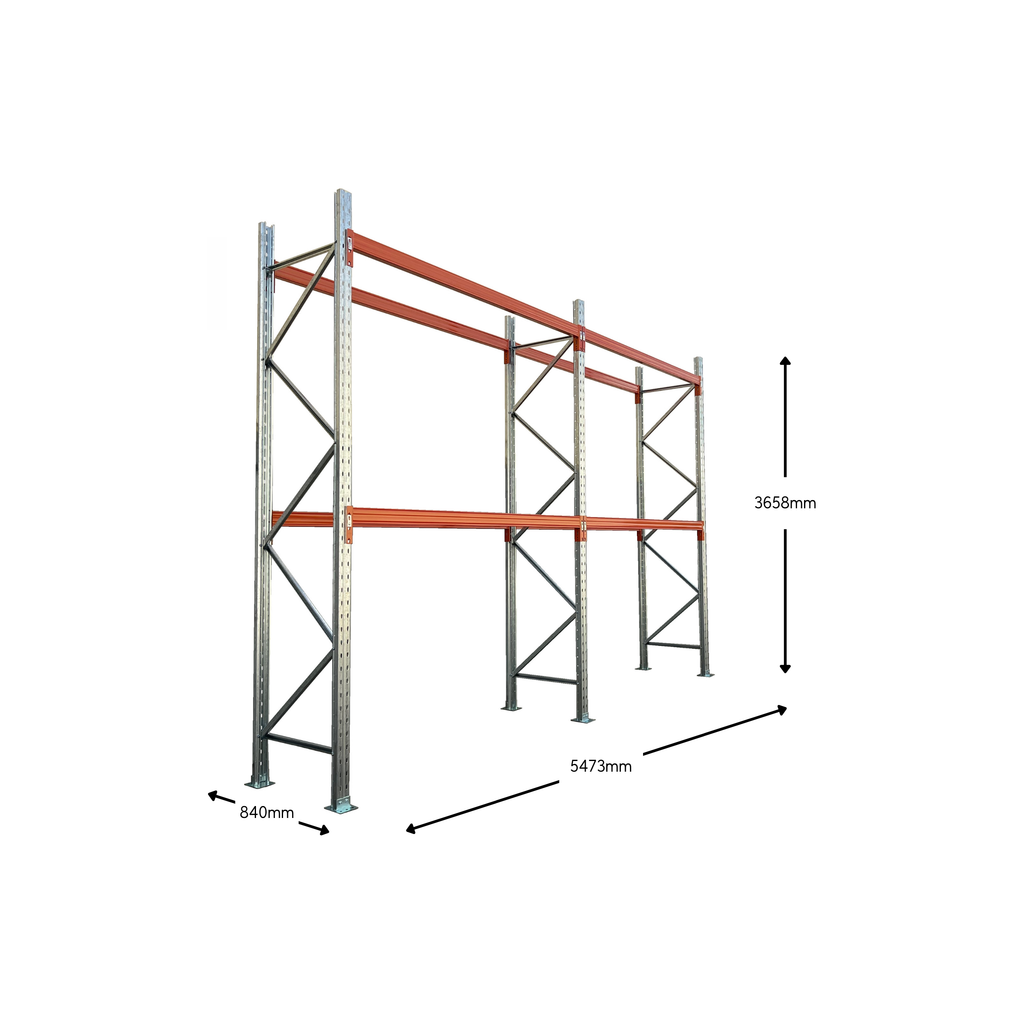

With an impressive overall length of 5473mm, and a depth of 840mm, providing ample room to accommodate your inventory while optimising floor space.

This comprehensive package ensures comprehensive coverage for your storage needs. Whether you're storing pallets, boxes, or other goods, our Pallet Racking system offers the strength and stability required to keep your inventory secure.

This package comes complete with all necessary components for easy assembly, ensuring a seamless setup process. From base plates to levelling plates, each detail is meticulously crafted to facilitate efficient DIY installation.

Upgrade your storage capabilities with our two-bay Pallet Racking package, designed to streamline your operations and maximise your storage space.

3 x Frames: Each galvanised 840mm deep frame, comes fully assembled and dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.

Includes Uprights, Bracing, Nuts and bolts, Base Plates, Leveling Plates, and Screw Bolt Floor Fixings.


Beams: Measuring 2591mm x 100mm, each with two safety clips. These beams are designed to support your pallets and provide maximum weight-bearing capacity. With four beams included, you'll have ample support for your storage needs.

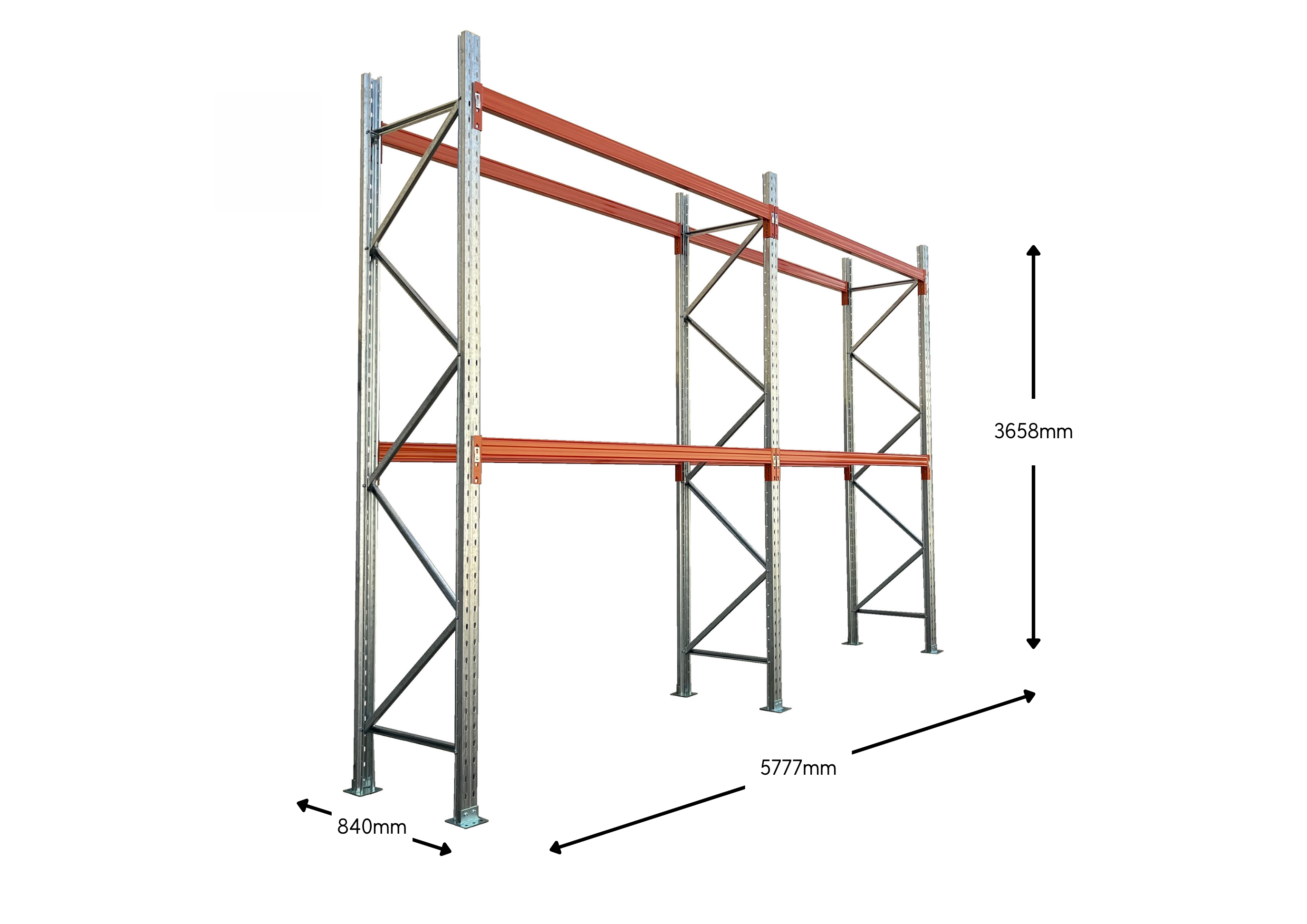

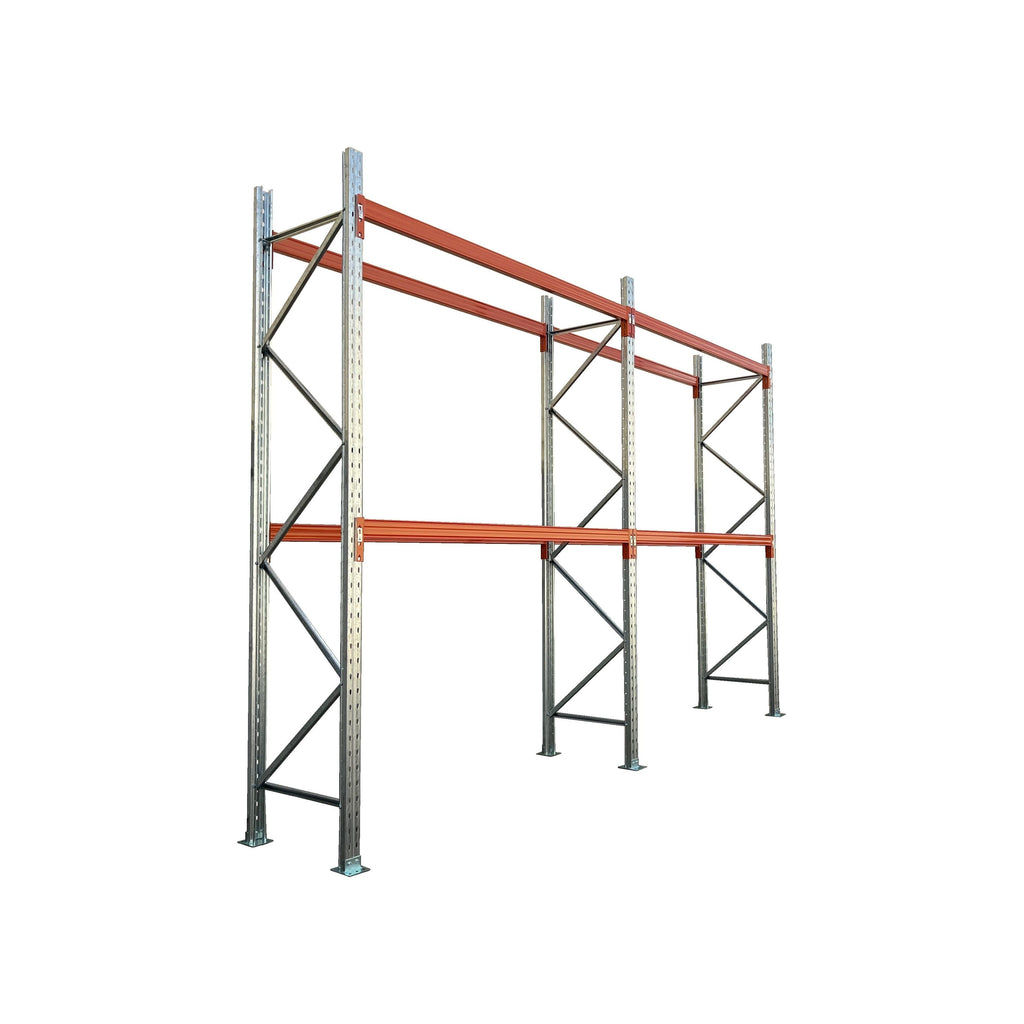

2438mm, 3048mm and 3658mm high include 8 x Beams

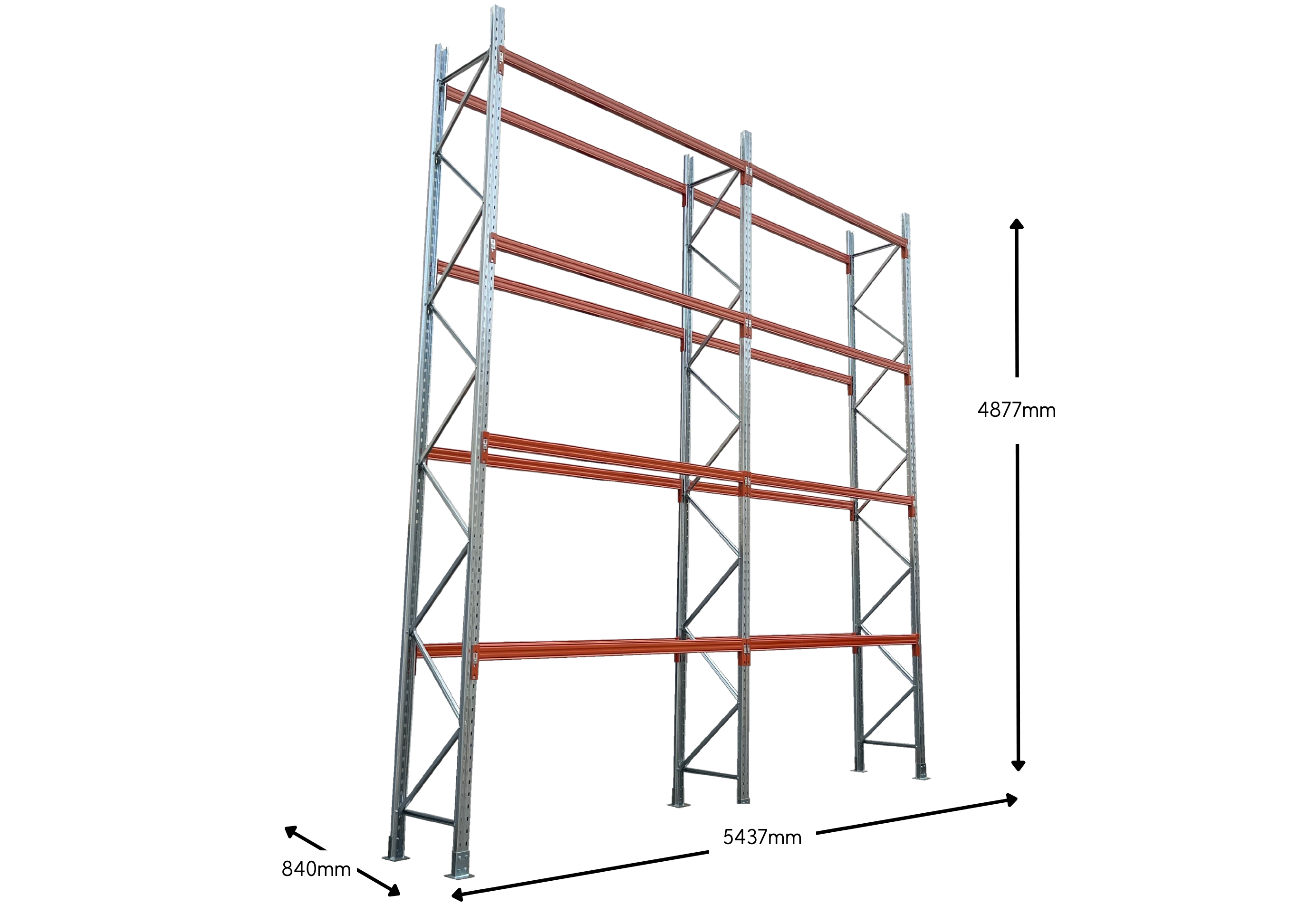

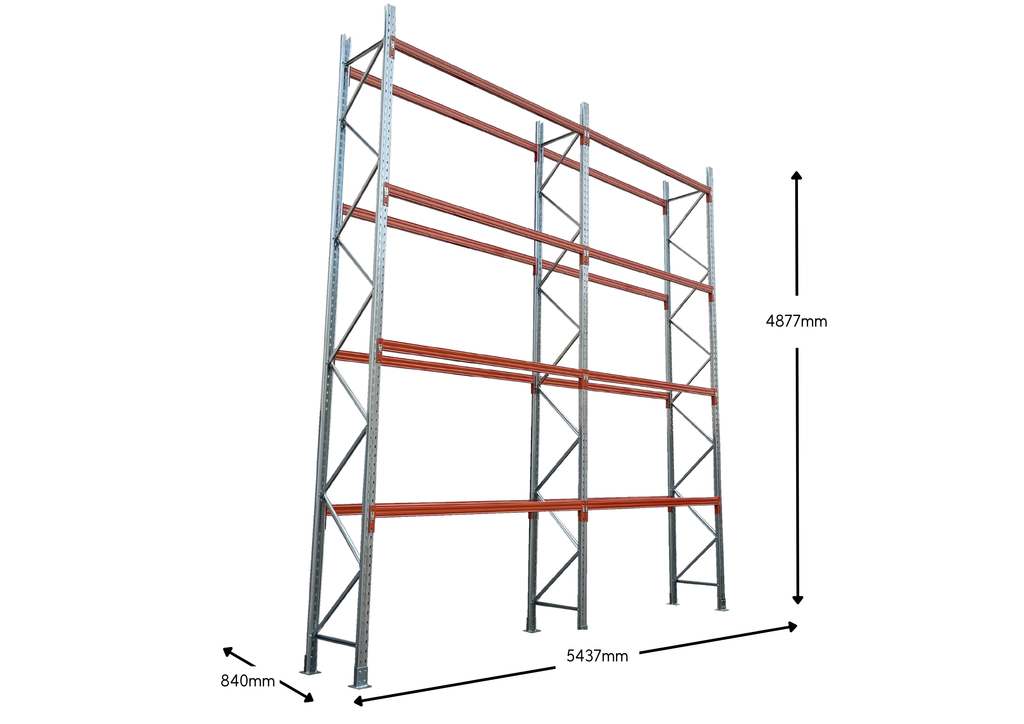

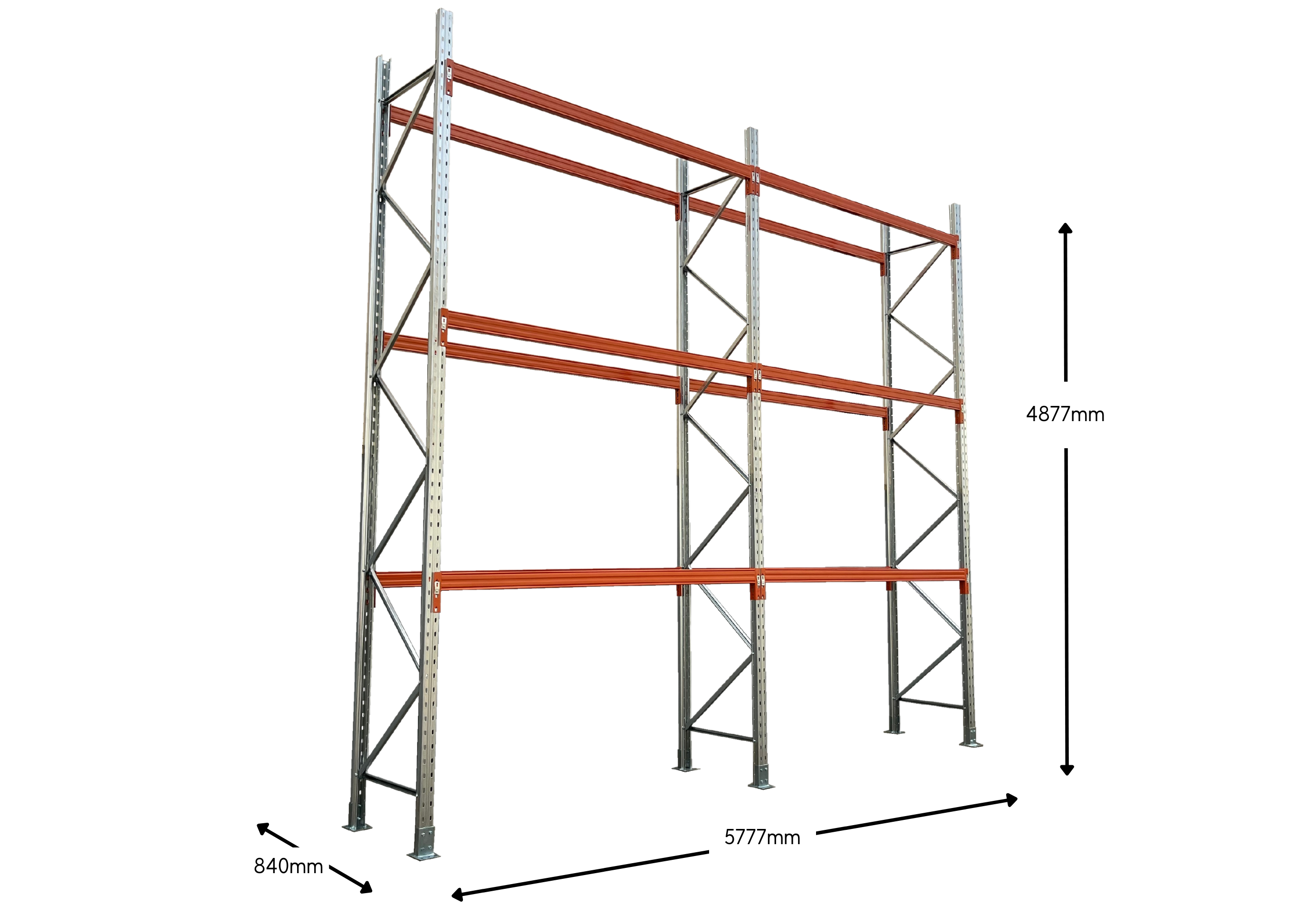

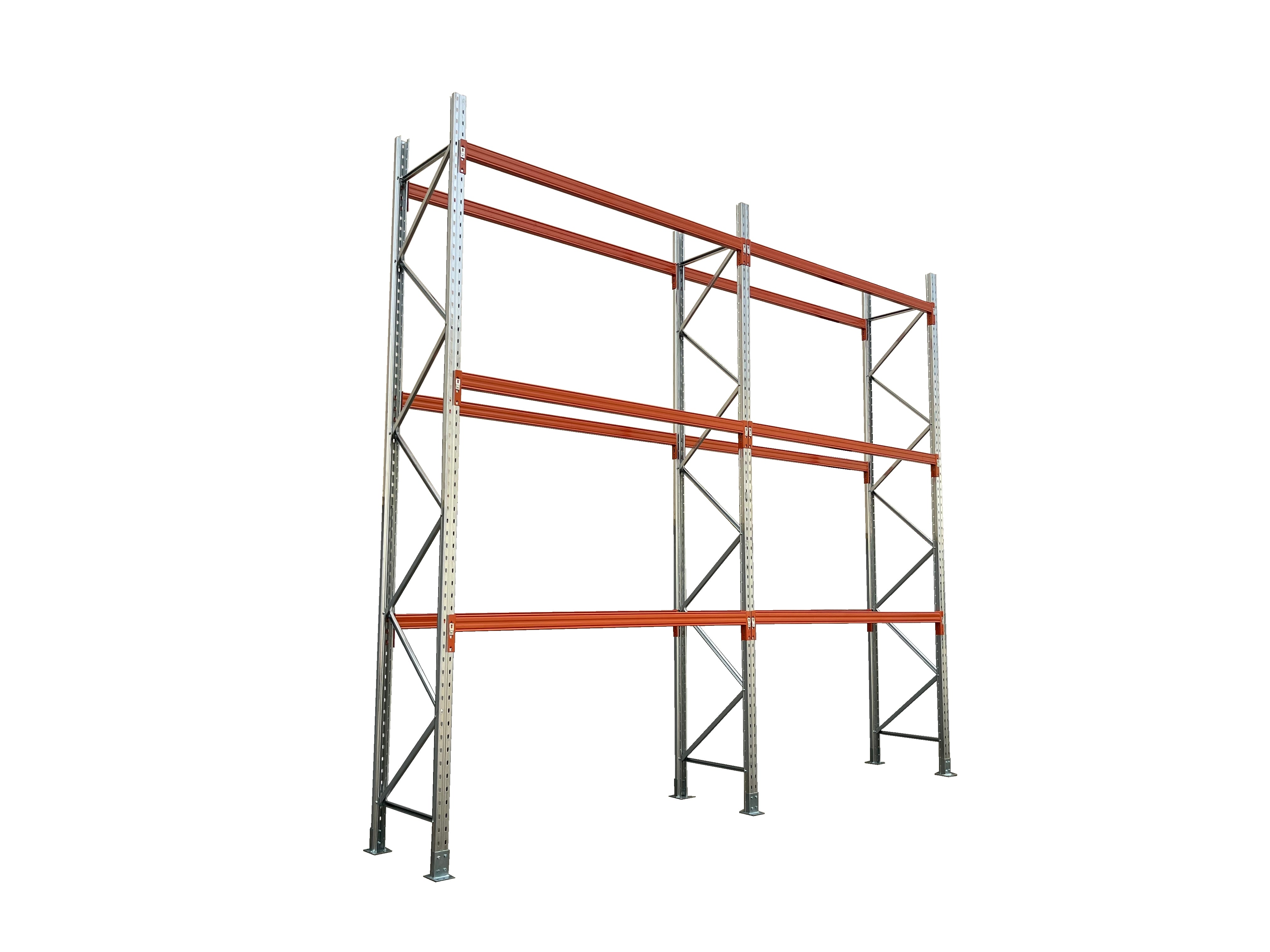

4877mm high include 12 x Beams

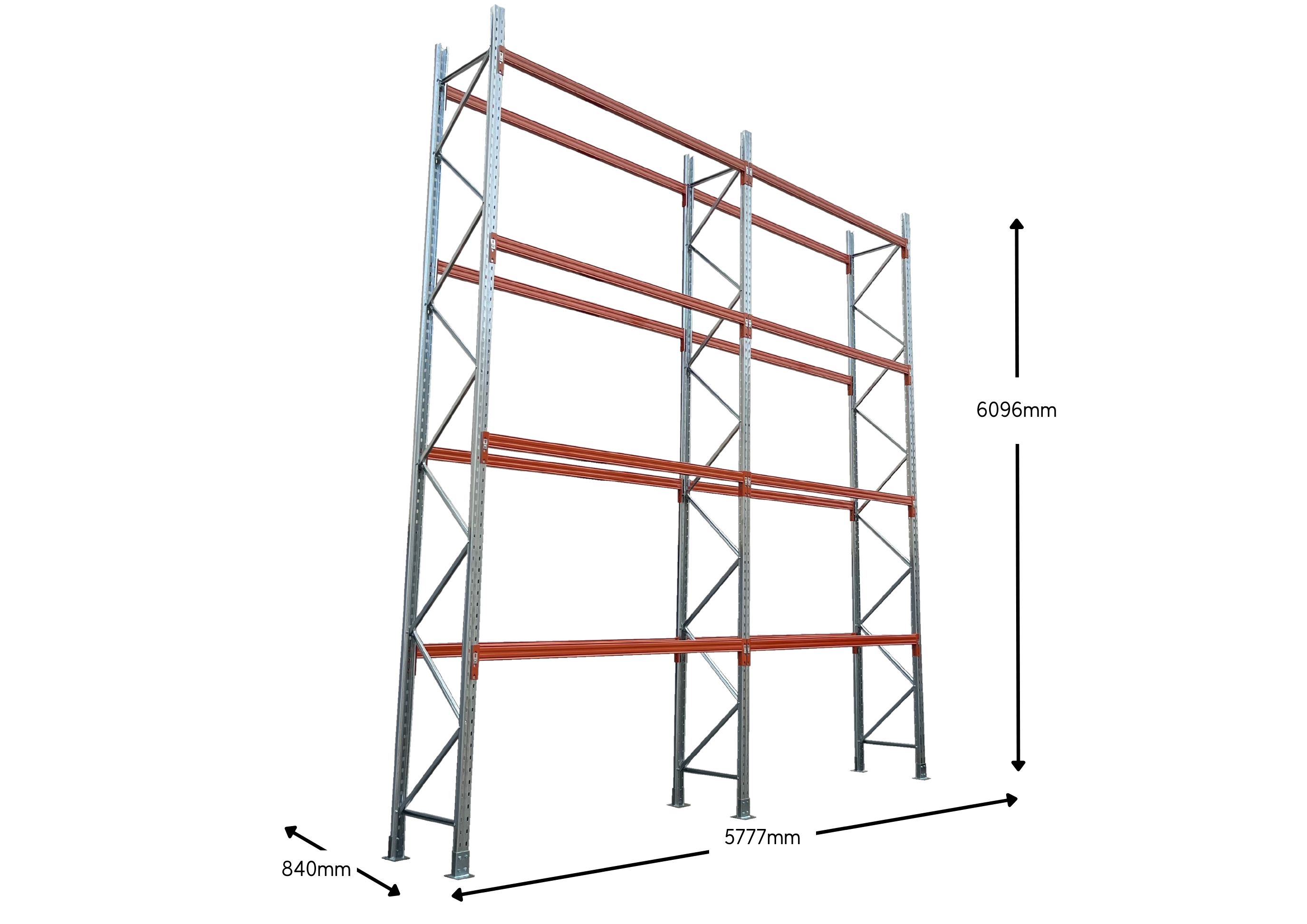

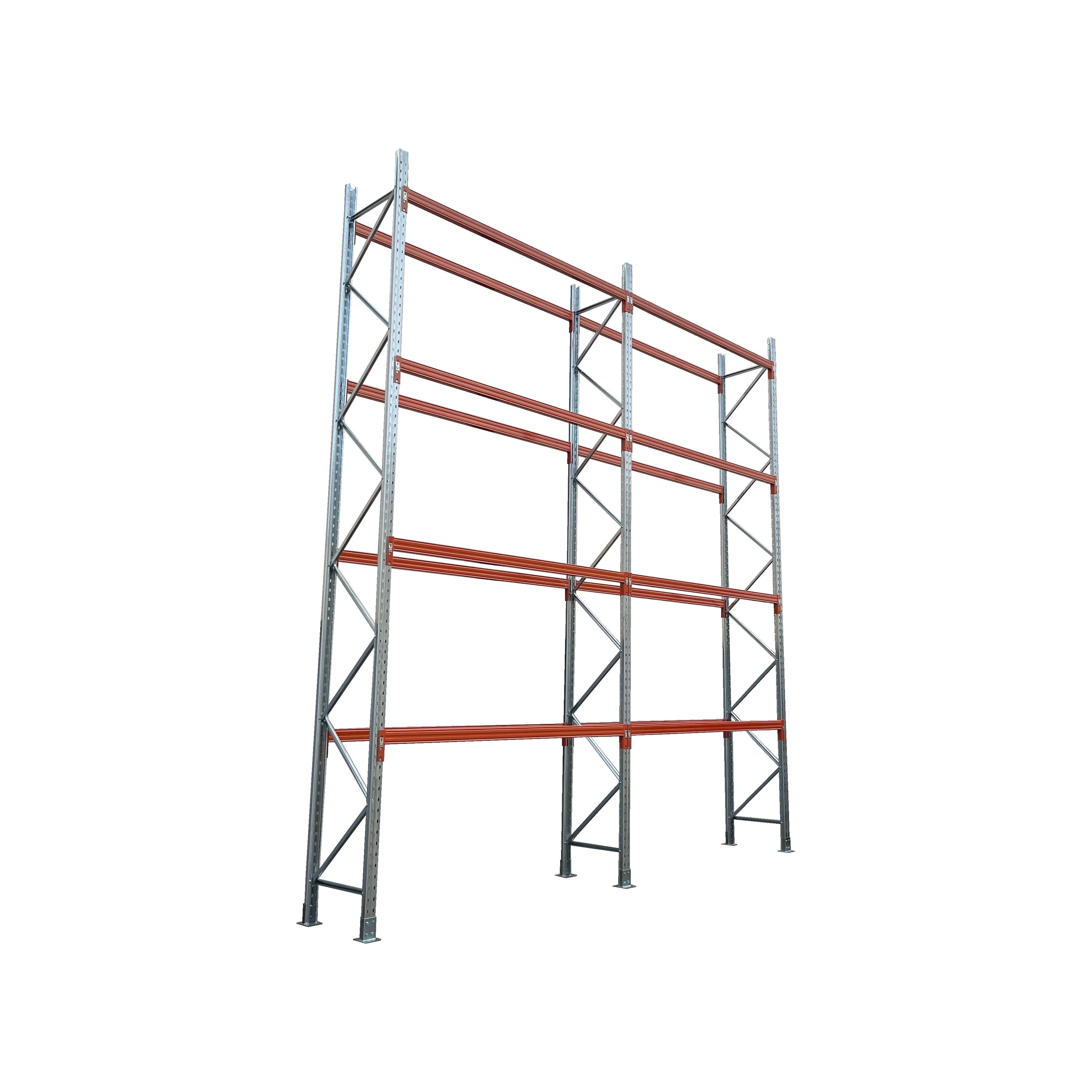

6096mm high include 16 x Beams



  • Dimensions: 2591mm x 100mm
  • Load Capacity: Supports up to 2000kg uniformly distributed load (UDL)
  • Pitch: 76.2mm
  • Connector Lugs: Equipped with 76.2mm pitch connector lugs for secure assembly


  • Material: Constructed from durable galvanised steel
  • Load Capacity: Each frame can hold a maximum weight of 10000KG per side, with a uniform load
  • Maximum Beam Height: Bottom beam should not exceed 1800mm for optimal stability

Overall Dimensions 840mm deep x 5473 wide

ReadyRack is Melbourne based and deliver state-wide.




ReadyRack offers interstate delivery services. Please add your items to the cart and select Request Quote.


Alternatively, if you would like to use your own freight provider, please select “pick up” at the checkout and email for pack size.


We endeavour to deliver the goods between the hours of 8:00am and 4:00pm Monday to Friday (excluding Public Holidays and non-trading days)


A forklift must be supplied by the customer at the time of the delivery, unless stated/discussed prior and arranged by ReadyRack.



In accordance with OH&S and ReadyRack policies, no one is allowed on the ReadyRack truck.


Our drivers are not required to hand unload. Please make sure you have at least two abled bodies to unload the truck.


We do not do curb side delivery/drop off. If your delivery arrives and there are no one/no abled bodies to unload the contents, our truck will return to the warehouse where the customer can collect or reschedule delivery at their own expense.

Pallet Racking Two Bay Package

SKU: 2B.2438.2591.840CW2.2T
Regular price $819.00
Sale price $819.00 Regular price
GST included.

Visit our warehouse and inspect the stock.

Delivery services over all Australia.

Racking is certified to the latest steel standards.

Everything in stock and ready to go!


    Warehousing application and installations
