Shelving Package — 8 Bays, 2930 mm High with 2585 mm Blue Stepped Beams
Description
Set up efficient, high-capacity shelving fast with this used shelving bundle. Designed for warehouses, storerooms and workshops, the package uses robust 2930 mm frames paired with 2585 mm blue stepped beams for stable, easy-to-assemble bays. At this height the layout supports six beam levels per bay, ideal for cartons, parts bins and general storage.
Melamine boards are included to suit the beam length and depth. There are enough boards to complete most of the shelving, and you can source the remaining boards locally to finish every level.
All used items are sold as-is. Purchases of used items are final, with no returns or exchanges accepted.
What’s Included

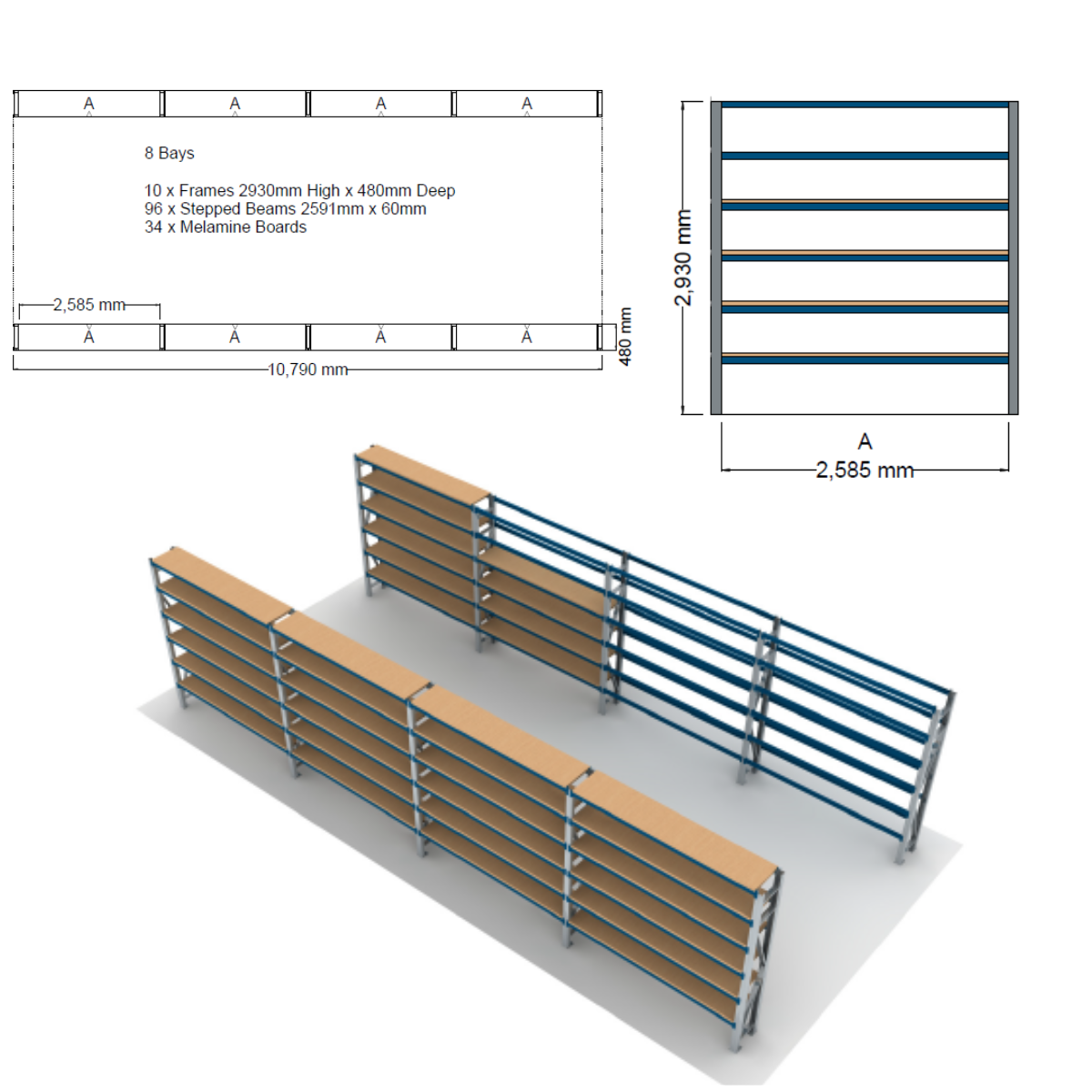

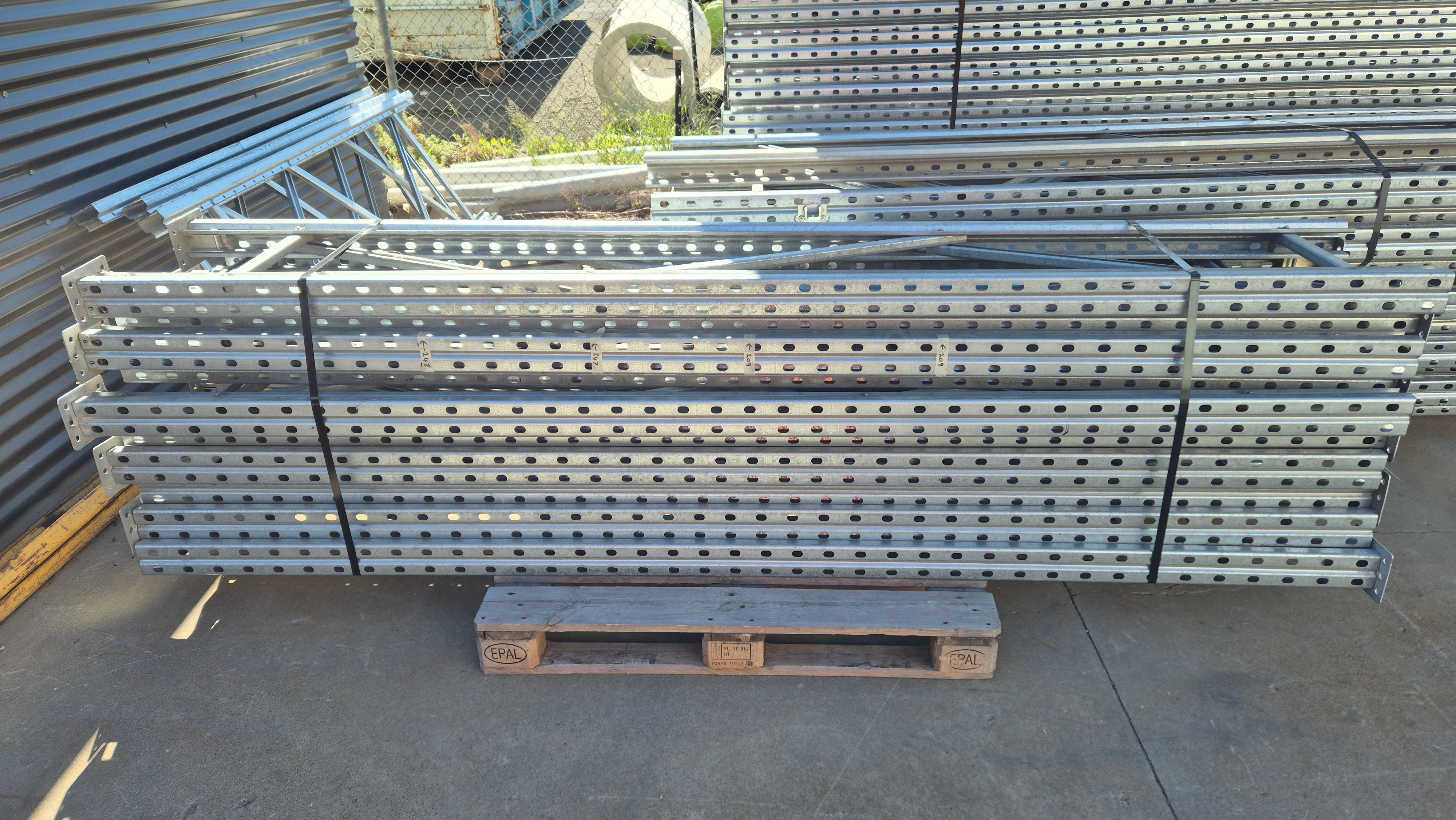

- 10 x Upright frames — 2930 mm high × 480 mm deep

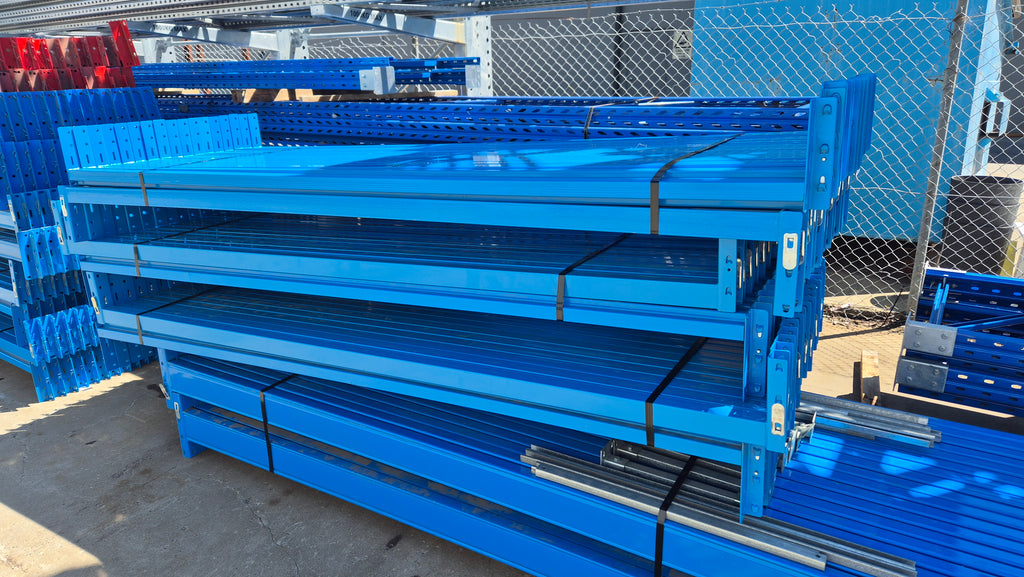

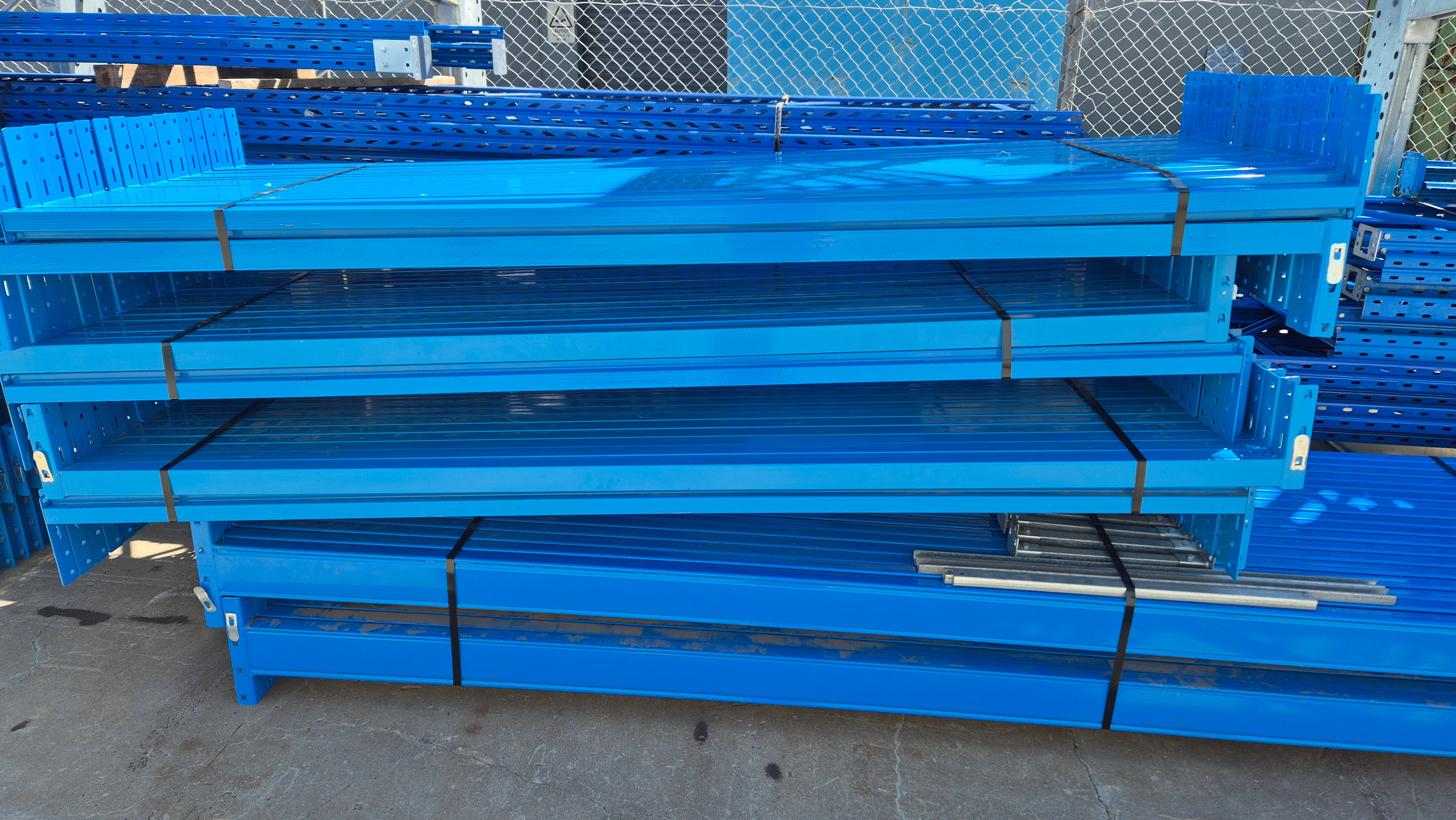

- 96 x Blue stepped beams — 2585 mm length × 60 mm profile
Suits 6 beam levels per bay across 8 bays

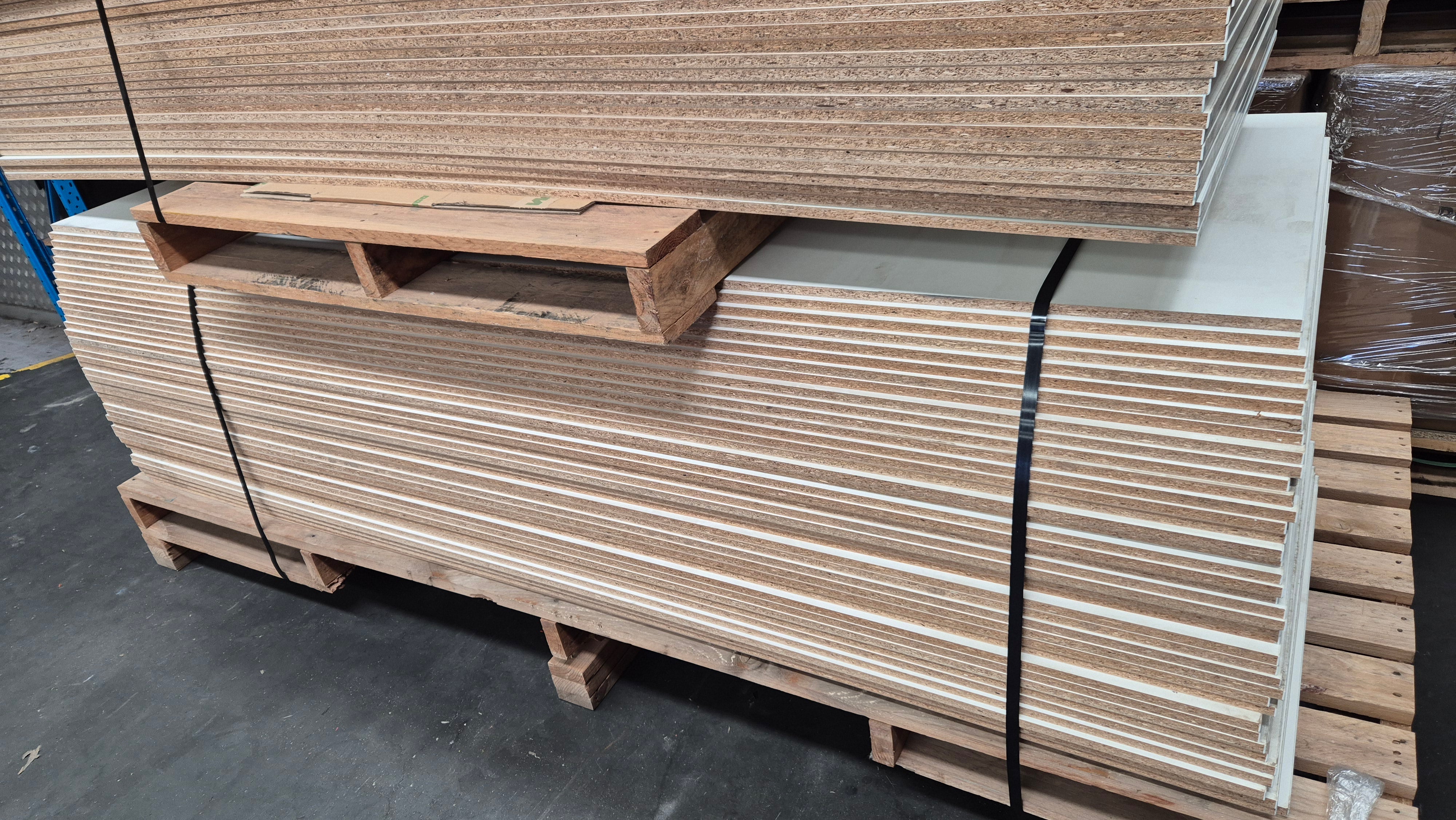

- 34 x Melamine shelf boards to suit 2585 mm bays at 480 mm depth
You will need 14 additional boards to fully deck all 6 levels across 8 bays
Note: 96 beams provide 12 beams per bay, which equals 6 levels across 8 bays. Ten frames allow flexible run design and can accommodate an extra starter or a spare frame as needed.
Specifications
-
System type: Longspan shelving, stepped beam design
-
Total bays configured: 8 bays at 2585 mm clear span
-
Frame size: 2930 mm (H) × 480 mm (D)
-
Beam size: 2585 mm (L) × 60 mm (profile), stepped, blue finish
-
Levels per bay: 6 beam levels (12 beams per bay)
-
Boarding: Melamine to suit 2585 mm × 480 mm; 34 supplied, 14 to be arranged by the buyer to complete 48 total boards
-
Typical use: Carton storage, parts, light to medium duty warehousing, e-commerce pick faces
-
Assembly: Clip-in beam connections for quick install; boards sit within stepped beams for a flush shelf surface
